Expansion Block/Orifice Tube: Locations

EXPANSION (ORIFICE) TUBE

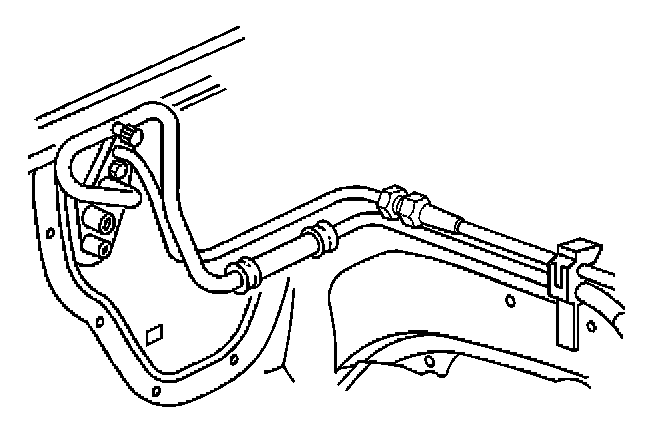

The expansion (orifice) tube is located behind the Power Vacuum Brake Booster, in the liquid line between the condenser outlet and evaporator inlet.
