Home
>>
Chevrolet
>>
2001
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Junction Block-Right I/P
>>
Top View: Outside Devices
Top View: Outside Devices

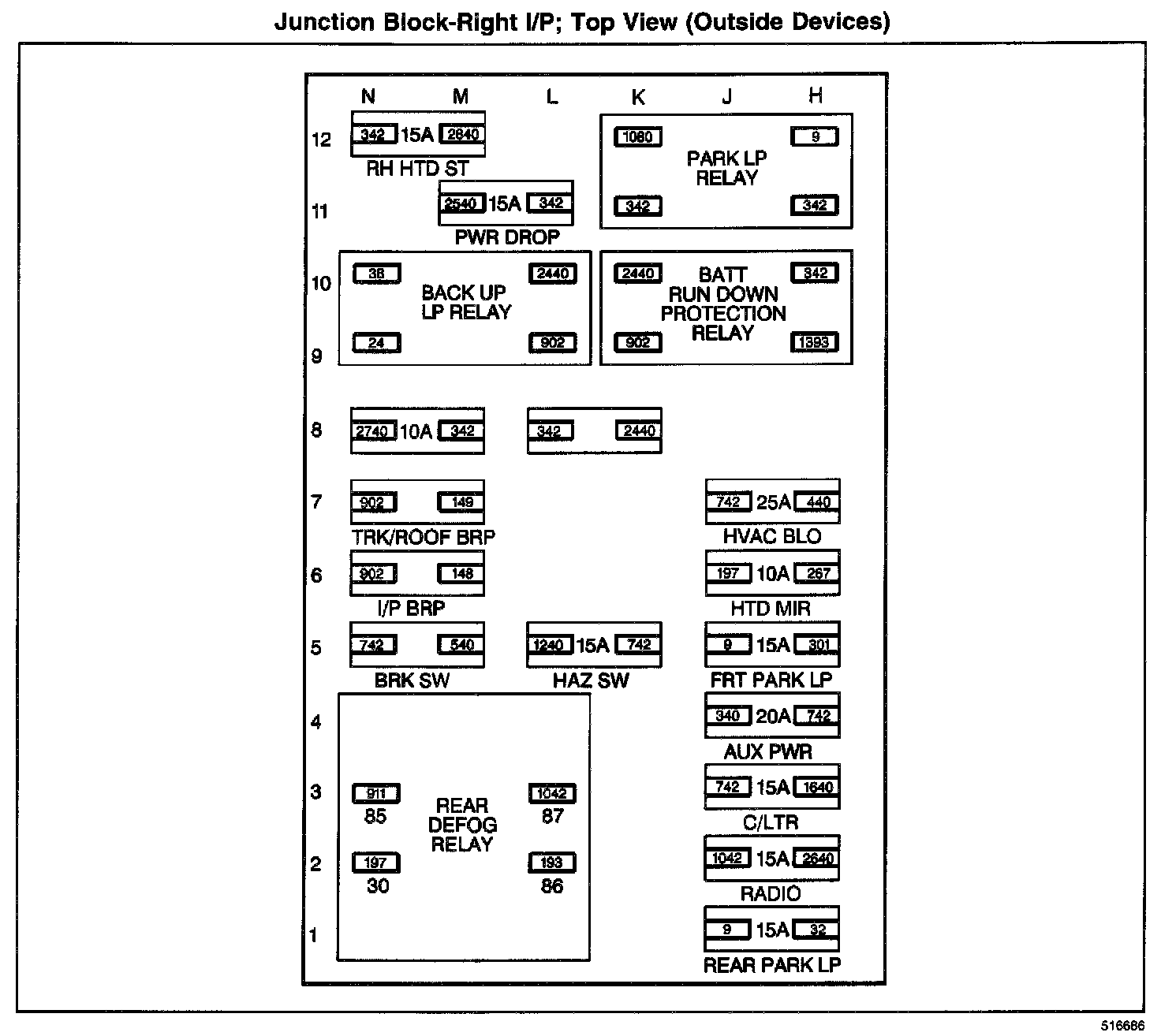

Junction Block-Right I/P; Top View (Outside Devices):
