Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2001
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Junction Block-Underhood (Top)
>>
Application Table
Application Table

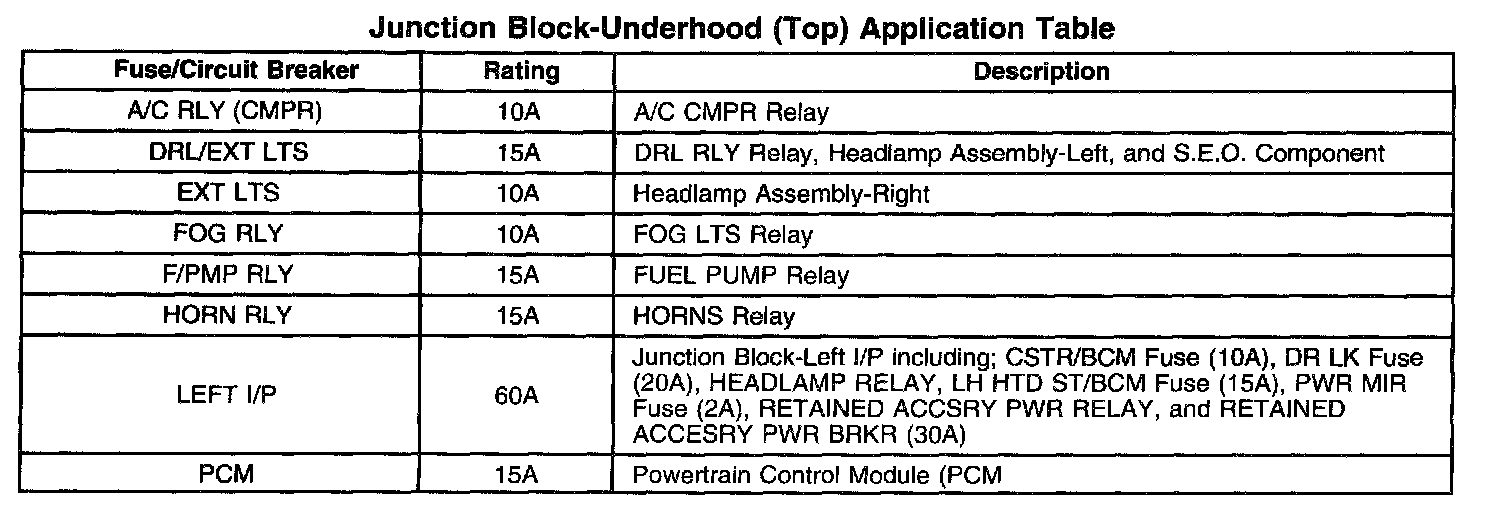

Junction Block-Underhood (Top) Application Table (Part 1 Of 2):

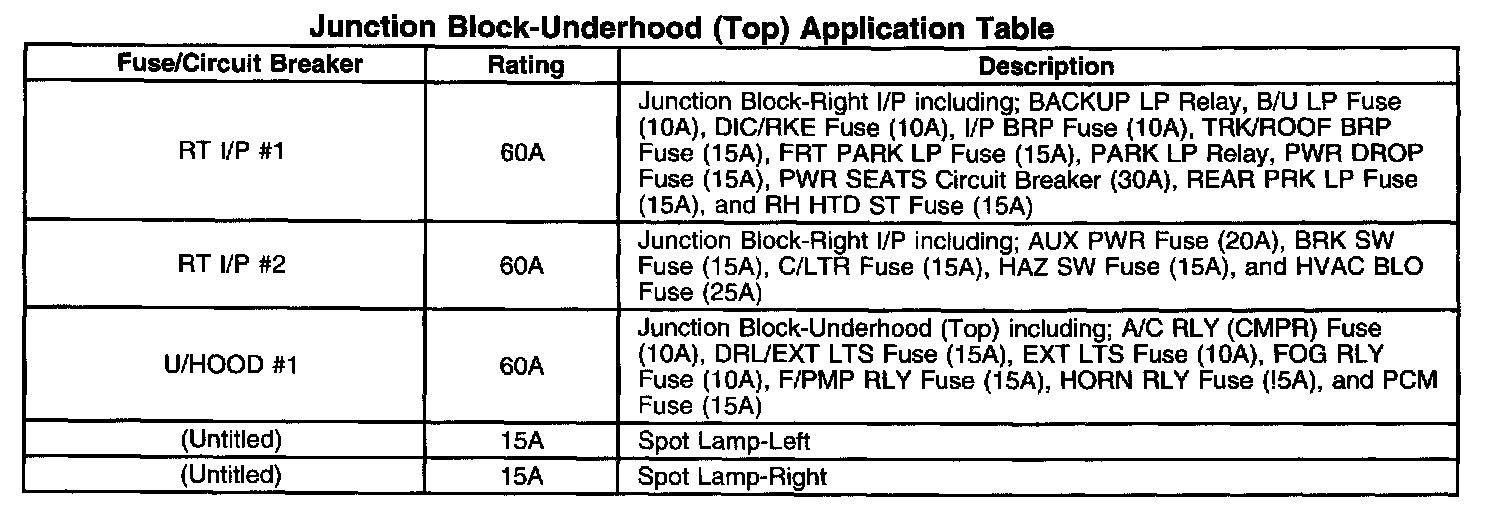

Junction Block-Underhood (Top) Application Table (Part 2 Of 2):
