Splash Guard: Service and Repair

Engine Splash Shield Replacement

Removal Procedure

Tool Required

J 38778 Trim Remover

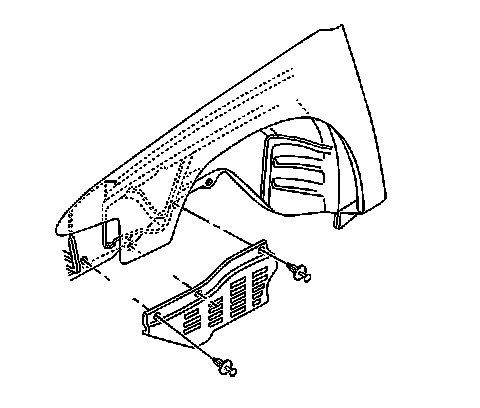

1. Remove the push-in retainers from the engine splash to the lower flange of the engine compartment side rail using J 38778 .




2. Remove the engine splash shield from the lower flange of the engine compartment side rail.



Installation Procedure





1. Position the engine splash shield to the lower flange of the engine compartment side rail.
2. Align the holes in the engine splash shield to the holes in the outboard side engine compartment side rail.
3. Install the push-in retainers to the engine splash shield.
