Antitheft and Alarm Systems
>>
Power Ground Distribution, and Theft Module
Power Ground Distribution, and Theft Module

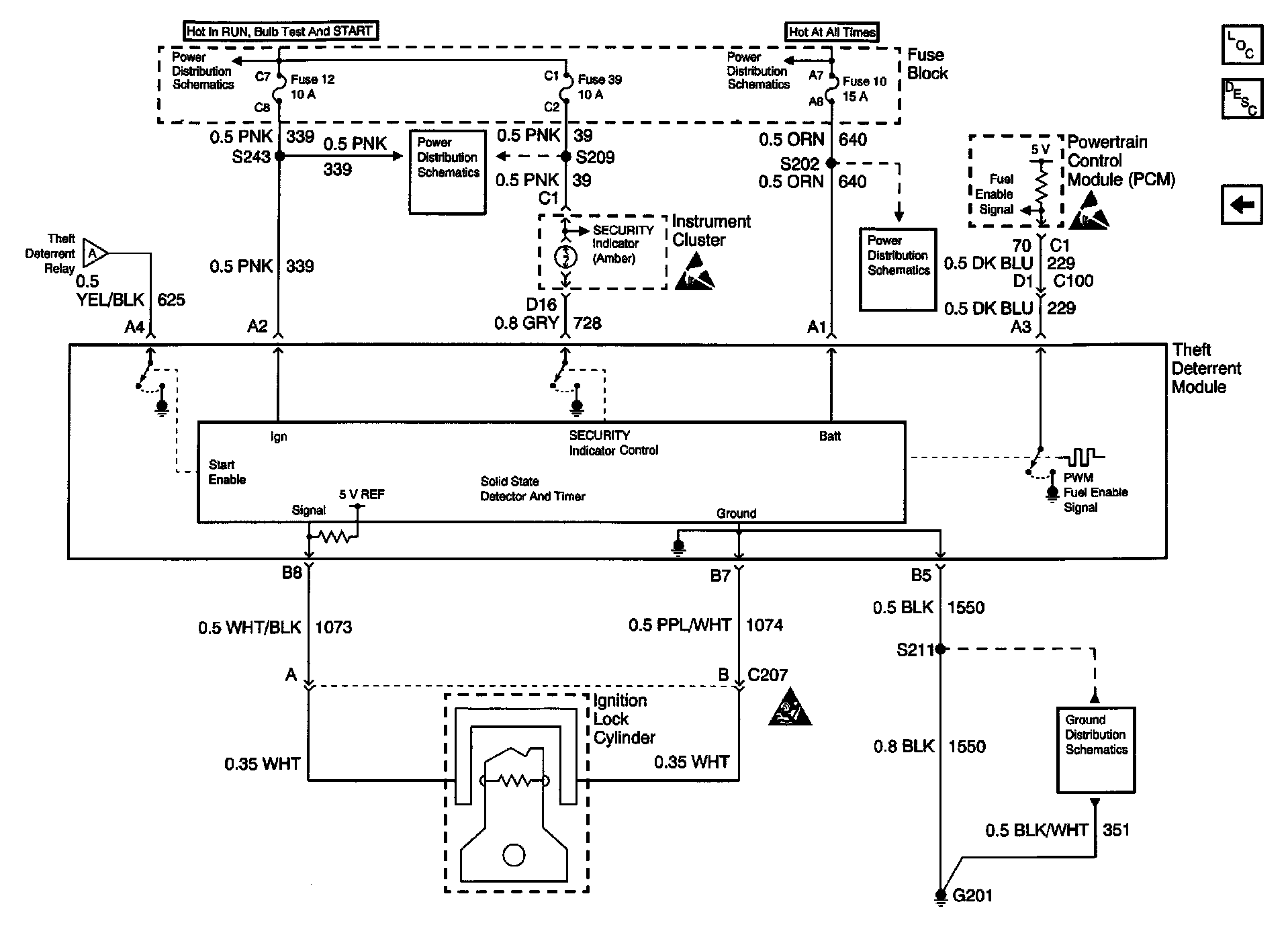

Theft Deterrent Schematics: Power Ground Distribution, And Theft Module:
