Junction Block - Left IP
Junction Block - Left IP

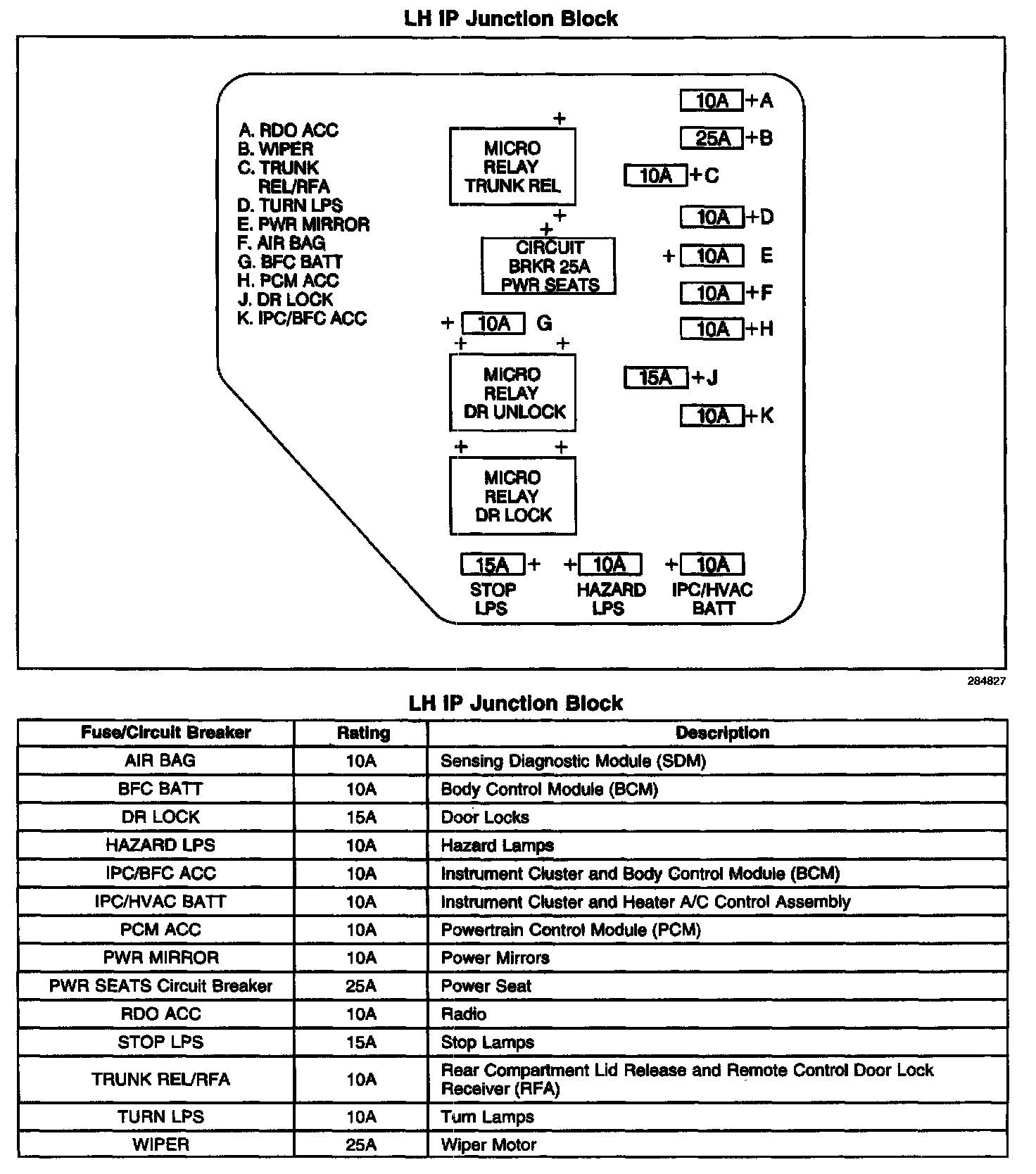

LH IP Junction Block:
Left Side Of The IP:
On the left side of the instrument panel
