Junction Block Right IP, C1
Junction Block Right IP, C1

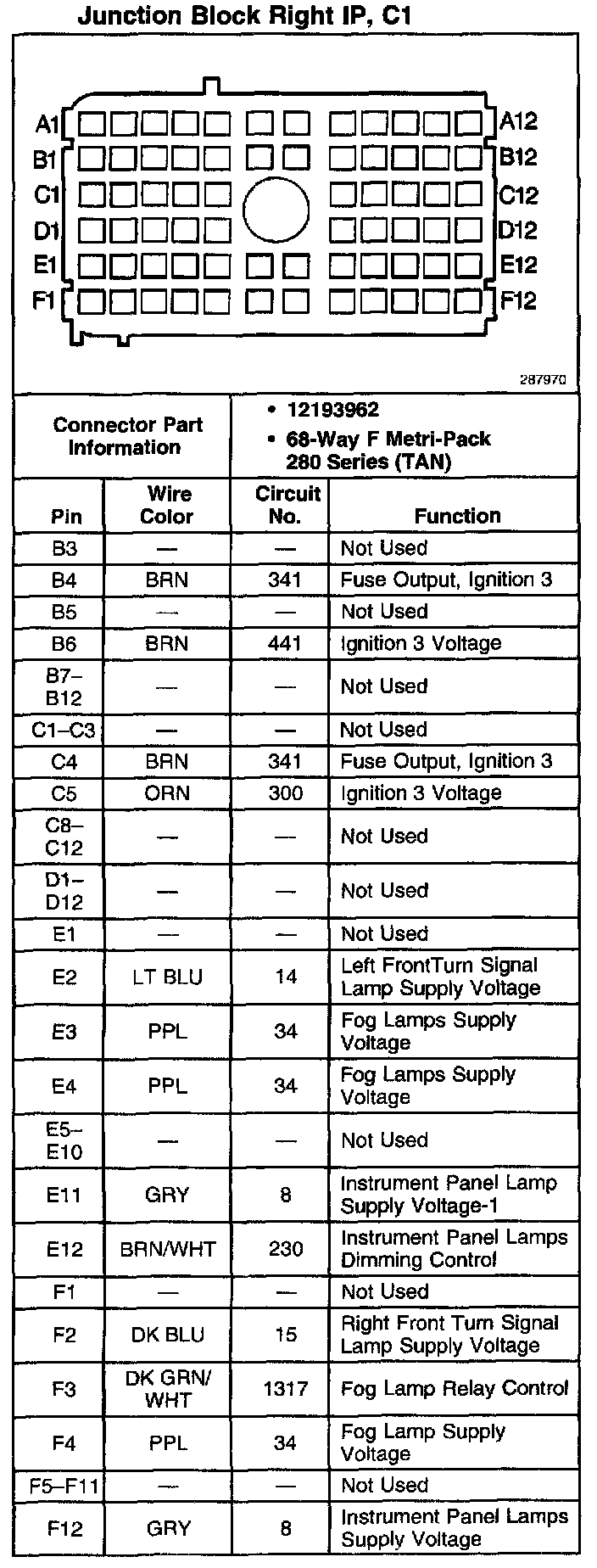

Junction Block Right IP, C1 (Part 1 Of 2):
Junction Block Right IP, C1 (Part 2 Of 2):
