Map Light Bulb: Service and Repair

DOME AND READING LAMP BULB REPLACEMENT

REMOVAL PROCEDURE

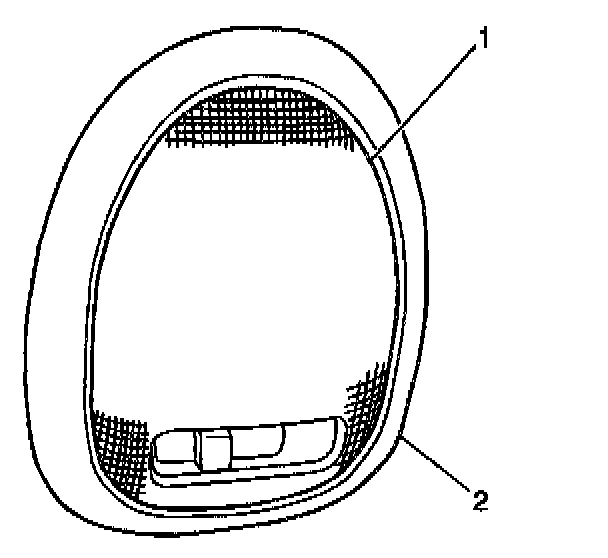

1. Remove the dome lamp lens (1) from the dome lamp (2) with a flat bladed tool.
2. Remove the dome lamp bulb from the socket.

INSTALLATION PROCEDURE




1. Install the dome lamp bulb to the socket.
2. Install the dome lamp lens (1) to the dome lamp (2). Ensure that the lens is retained.
