Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2001
>>
Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
A/T Internal Connector End Views
>>

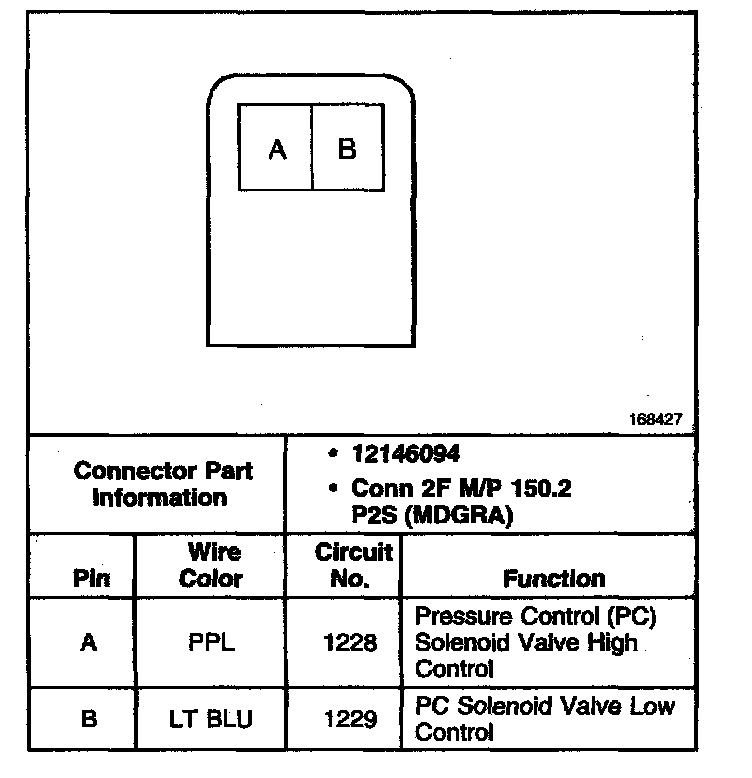

Pressure Control Solenoid Valve Connector
Pressure Control Solenoid Valve Connector
