Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2001
>>
Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Underhood Junction Block

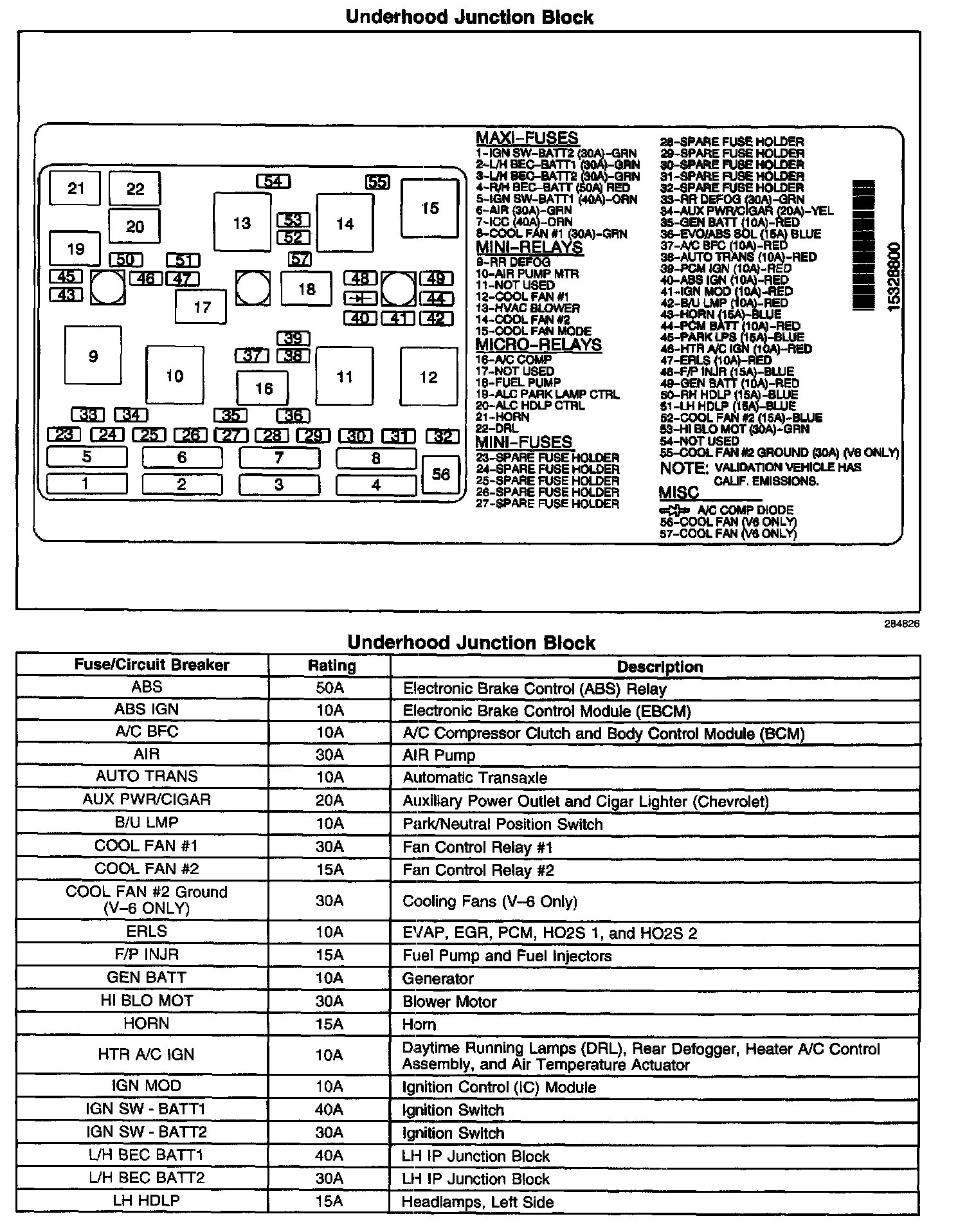

Underhood Junction Block
Underhood Junction Block (Part 1 Of 2):
Underhood Junction Block (Part 2 Of 2):
