Power Steering Pressure Pipe Replacement

Power Steering Pressure Pipe Replacement

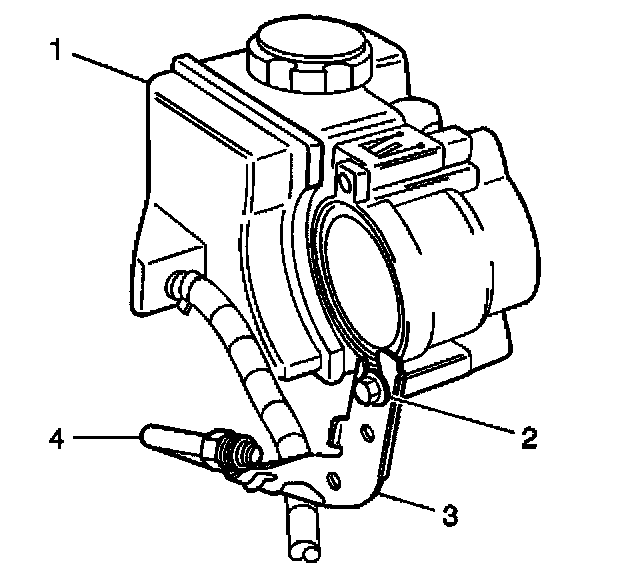

Removal Procedure





1. Remove the power steering pressure hose (3) from the power steering pressure pipe (4).





2. Remove the bolt (2) from the power steering pressure pipe bracket (3).
3. Remove the power steering pressure pipe (4) from the power steering pump (1).
4. Remove the power steering pressure pipe (4) from the vehicle.

Installation Procedure





1. Install the power steering pressure pipe (4) to the vehicle.

Notice: Refer to Fastener Notice in Service Precaution.

2. Install the power steering pressure pipe (4) to the power steering pump (1).
Tighten the fitting to 27 Nm (20 ft. lbs.).
3. Install the bolt (2) to the power steering pressure pipe bracket (3).
Tighten the bolt to 26 Nm (19 ft. lbs.).





4. Install the power steering pressure hose (3) to the power steering pressure pipe (4).
Tighten the fitting to 27 Nm (20 ft. lbs.).
5. Bleed the power steering system.
