Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

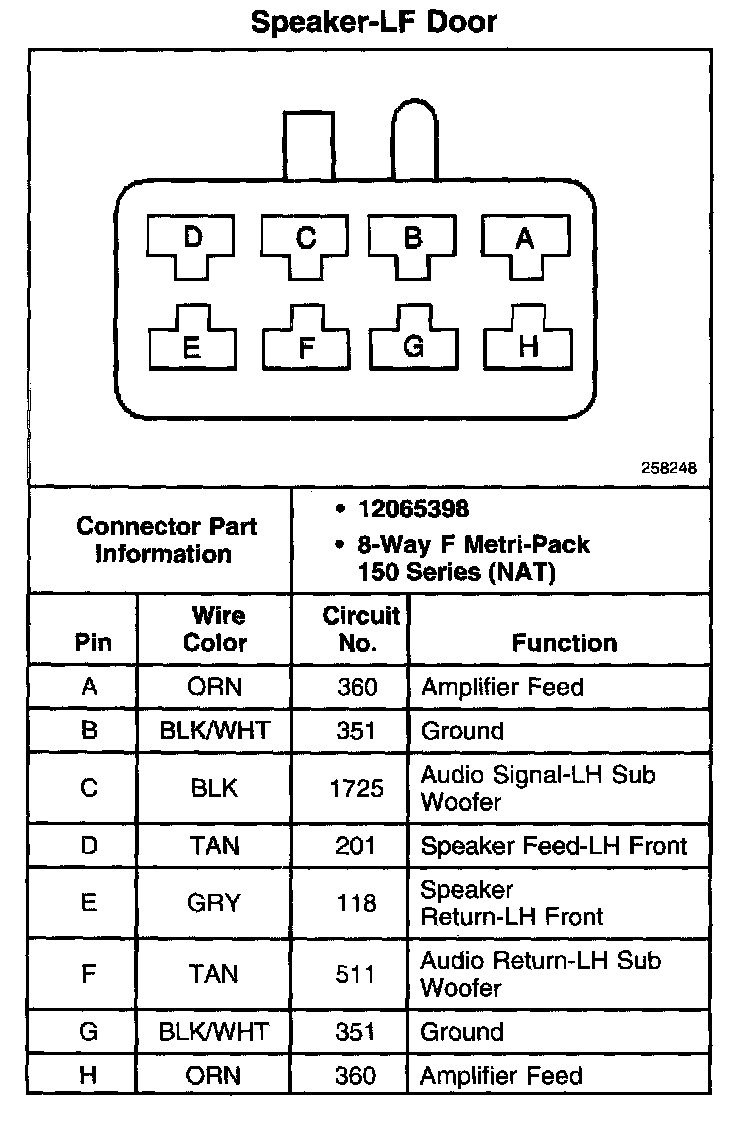

Speaker - LF Door:

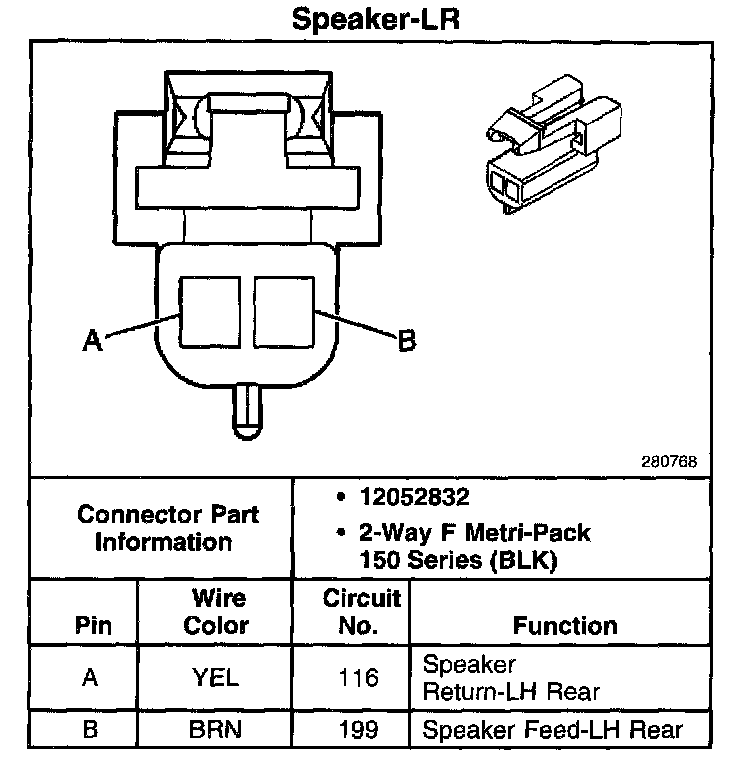

Speaker - LR:

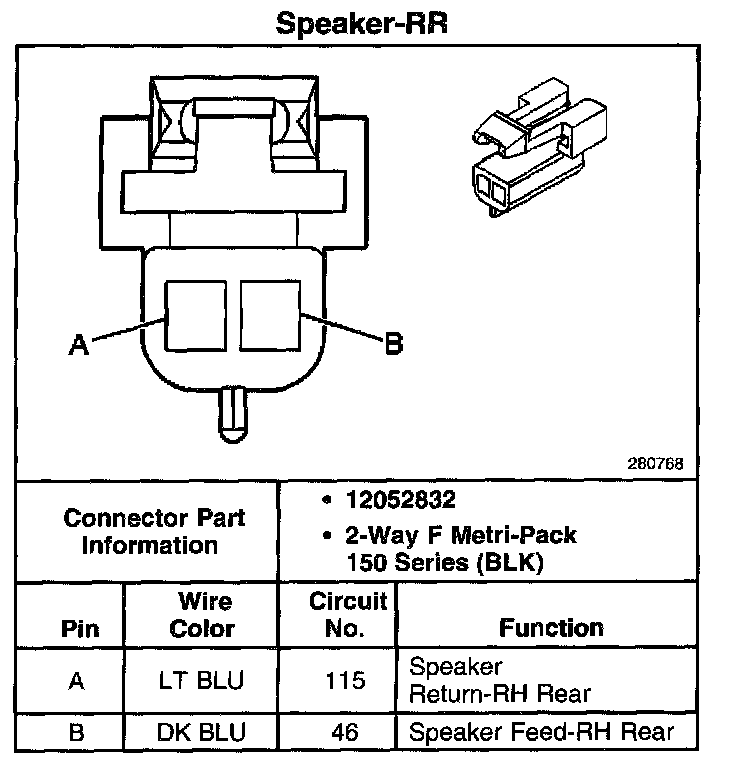

Speaker - RR:

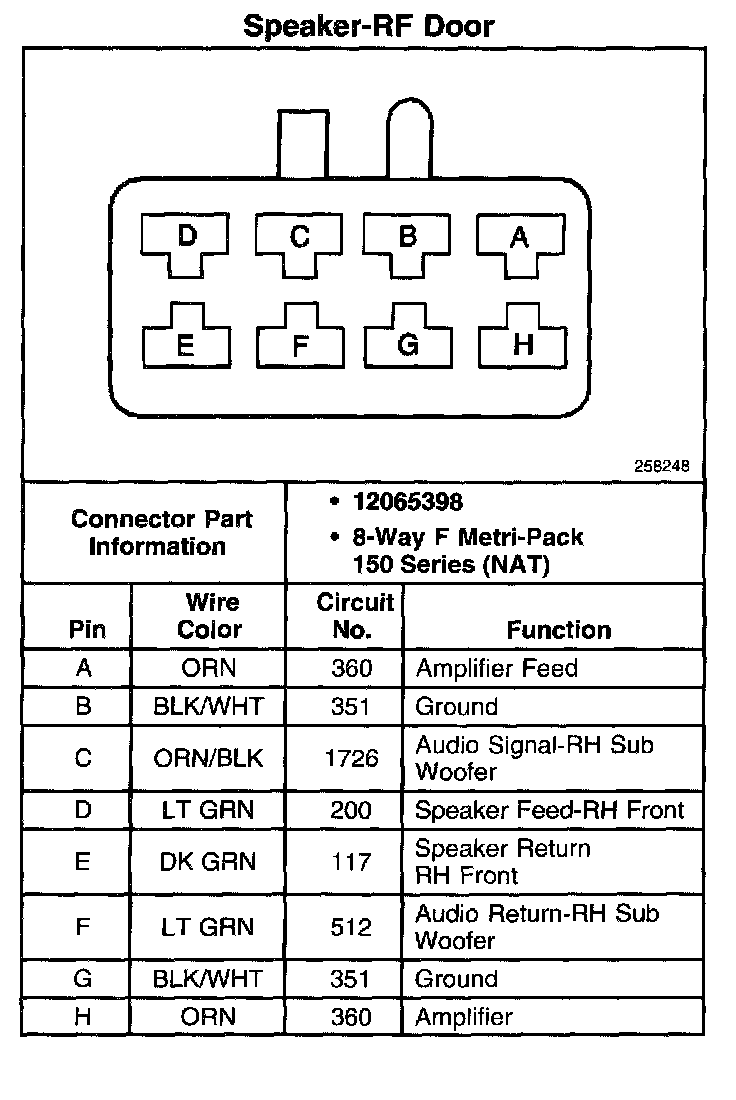

Speaker - RF Door:
