Air Injection Vacuum Control Solenoid Valve: Service and Repair

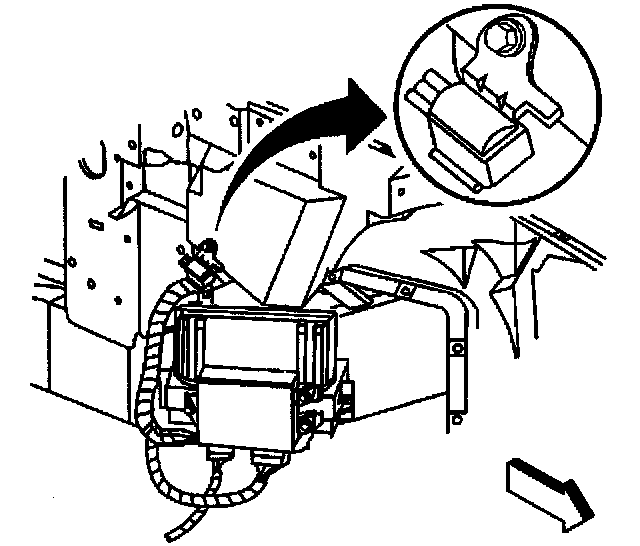

SECONDARY AIR INJECTION VACUUM CONTROL SOLENOID VALVE REPLACEMENTREMOVAL PROCEDURE
1. Remove the right wheelhouse filler panel.
2. Remove the vacuum hoses from the Secondary Air Injection (AIR) Solenoid Valve.
3. Remove the electrical connector from the AIR Solenoid Valve.

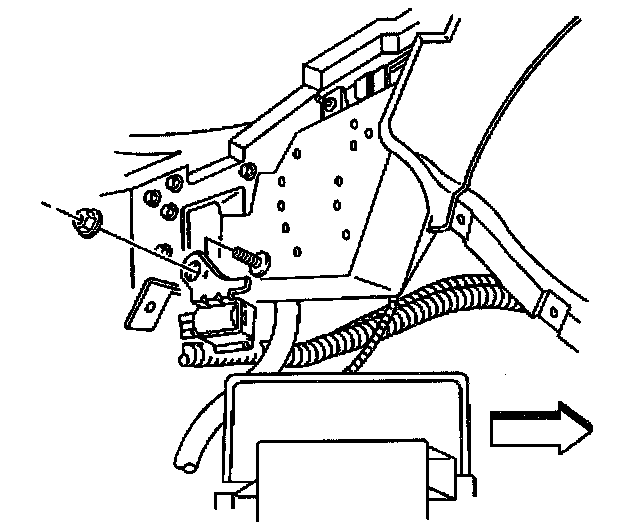

4. Remove the AIR Solenoid Valve retaining nut.
5. Remove the AIR Solenoid Valve.
INSTALLATION PROCEDURE
1. Install the AIR Solenoid Valve.
NOTE: Refer to Fastener Notice in Service Precautions
2. Install the AIR Solenoid Valve retaining nut.
Tighten
Tighten the AIR Solenoid Valve retaining nut to 7 N.m (62 lb in).
3. Install the vacuum hoses to the AIR Solenoid Valve.
4. Install the electrical connector to the AIR Solenoid Valve.
5. Install the right wheelhouse filler panel.
