Windshield Washer Motor: Service and Repair

WIPER MOTOR CRANK ARM

^ J 39232 Wiper Transmission Separator
^ J 39529 Wiper transmission Installer

REMOVAL PROCEDURE




1. Remove the wiper arms.
2. Remove the air inlet grille panel.
3. Using the J 39232, disconnect the wiper transmission from the wiper motor crank arm.

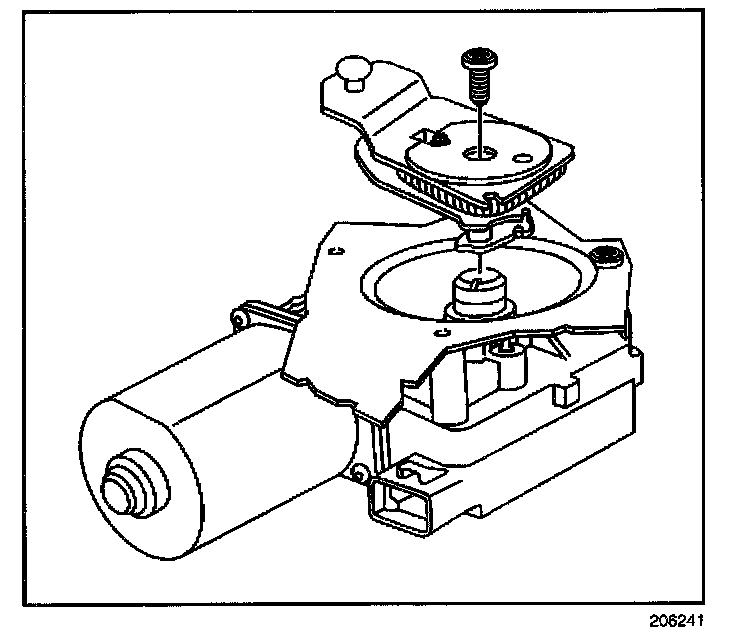

4. Remove the wiper motor crank arm screw.
5. Remove the wiper motor crank arm from the wiper motor.

INSTALLATION PROCEDURE

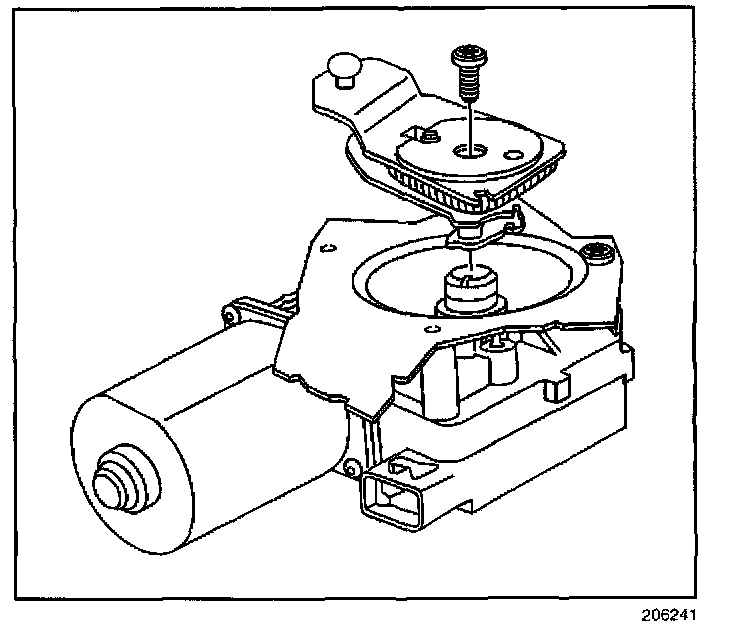

1. Install the wiper motor crank arm onto the wiper motor.

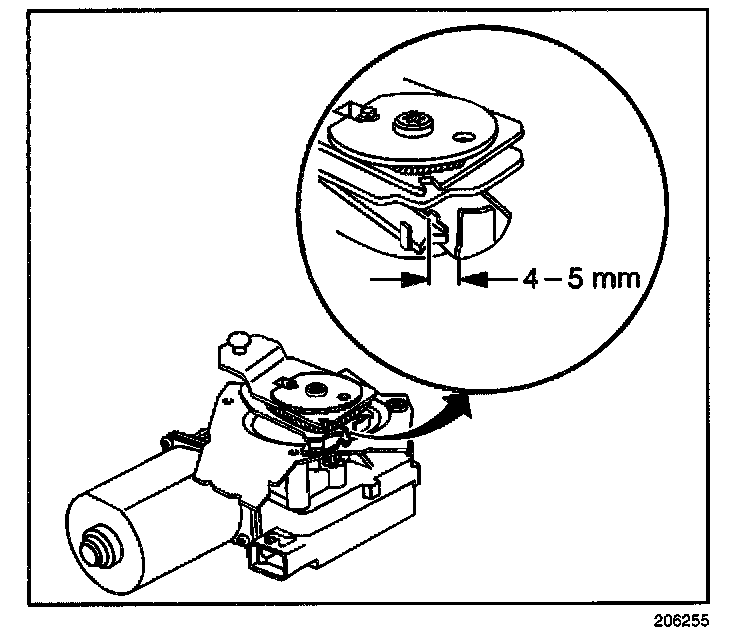

2. Position the park latch 4 - 5 mm (0.16-0.20 in) from the park tab.

NOTE: Refer to Fastener Notice in Service Precautions.




3. Install the wiper motor crank arm screw.

Tighten
Tighten the screw to 15 N.m (11 lb ft).

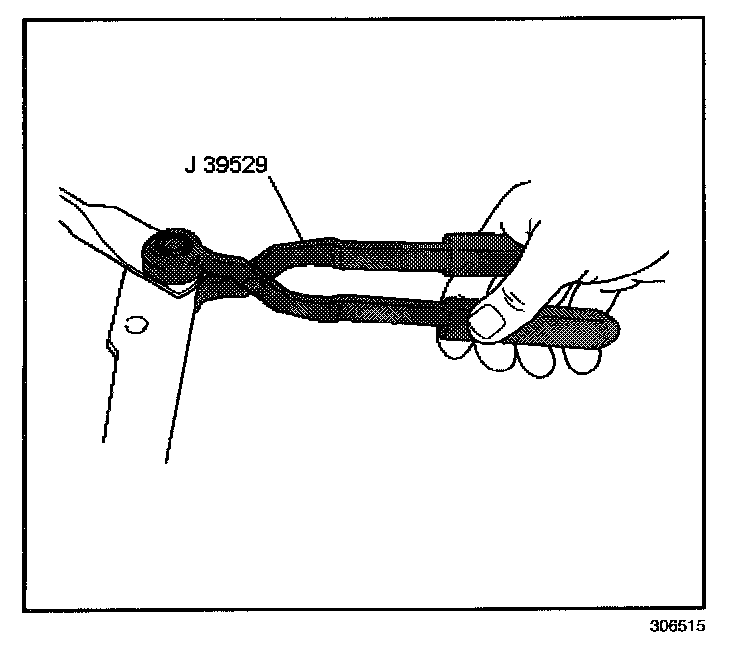

4. Using the J 39529, connect the wiper transmission to the wiper motor crank arm.
5. Install the wiper motor module.
6. Install the air inlet grille panel.
7. Install the wiper arms.
8. Inspect the wipers for proper operation.
