Home >> Chevrolet >> 2002 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Locations >> Harness Locations >> Lower Right of Passenger Compartment

Lower Right of Passenger Compartment

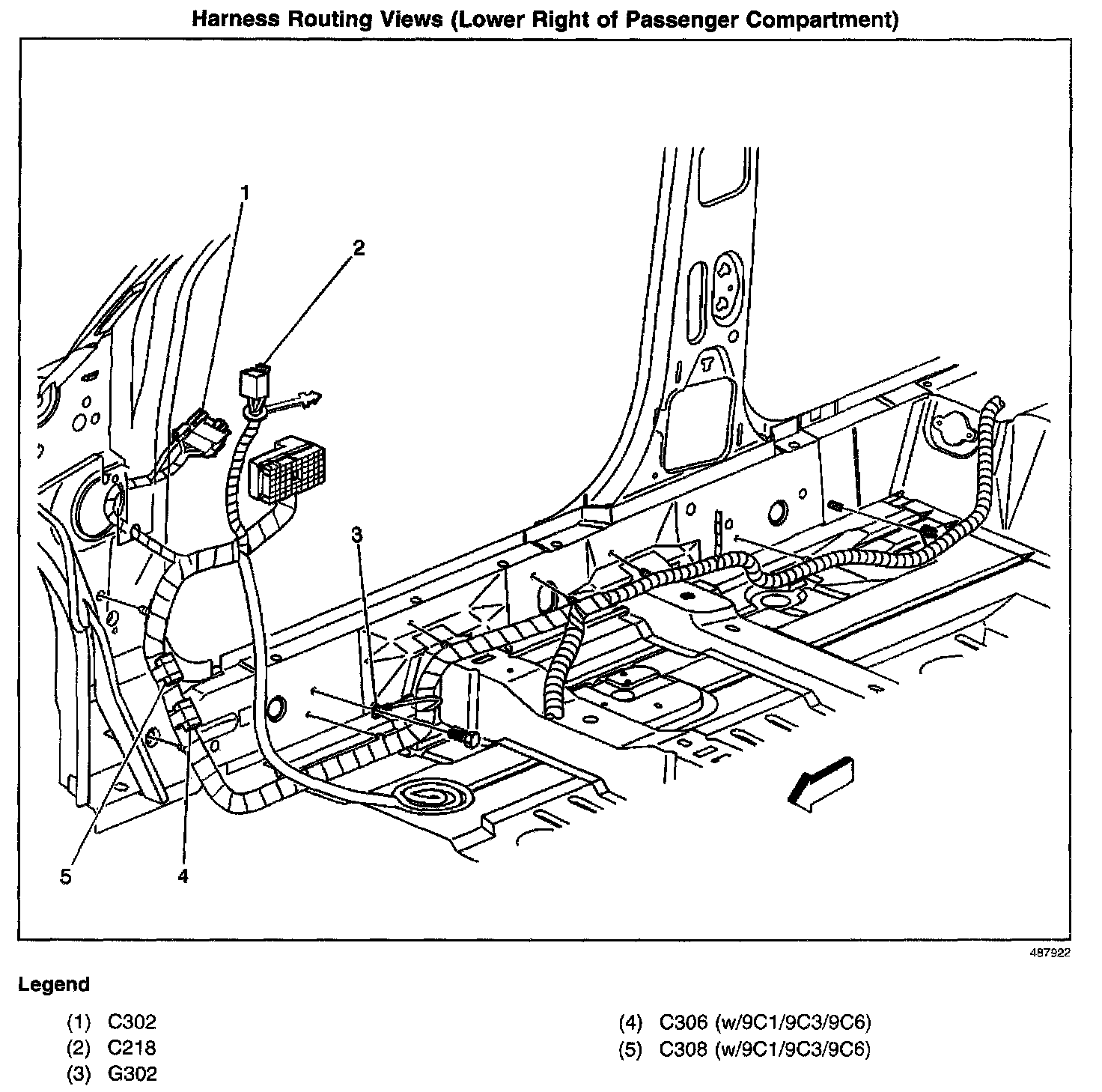

Harness Routing Views (Lower Right Of Passenger Compartment):
