Oil Level Sensor: Service and Repair

Engine Oil Level Sensor and/or Switch Replacement

Removal Procedure
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

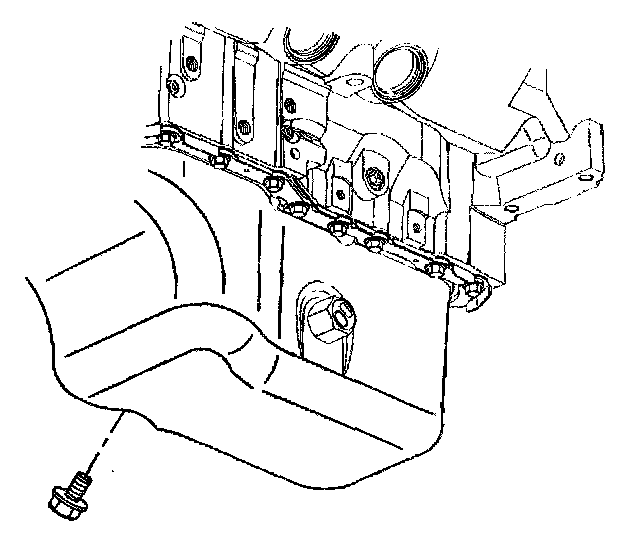

2. Remove the engine oil drain plug in order to drain the engine oil.

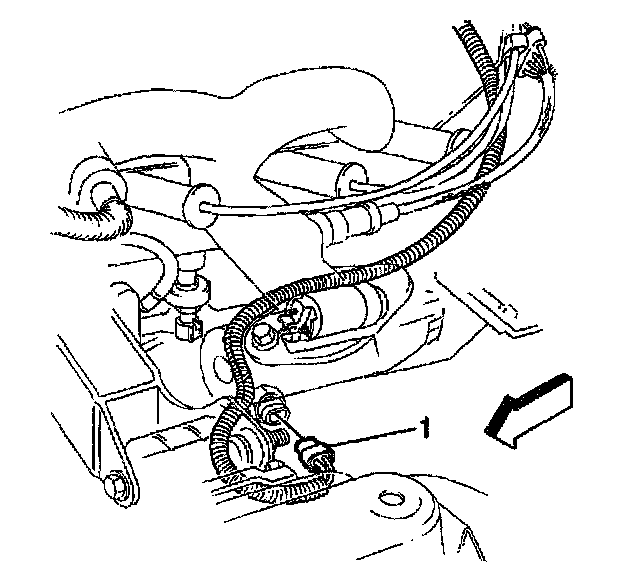

3. Disconnect the electrical connector (1) from the oil level sensor.

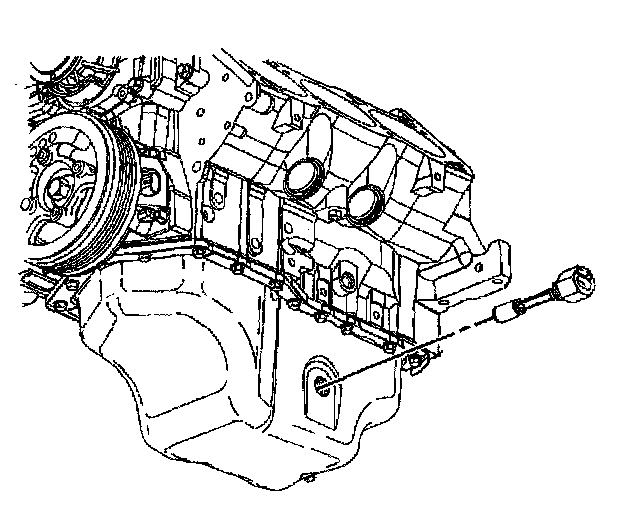

4. Remove the oil level sensor from the oil pan.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

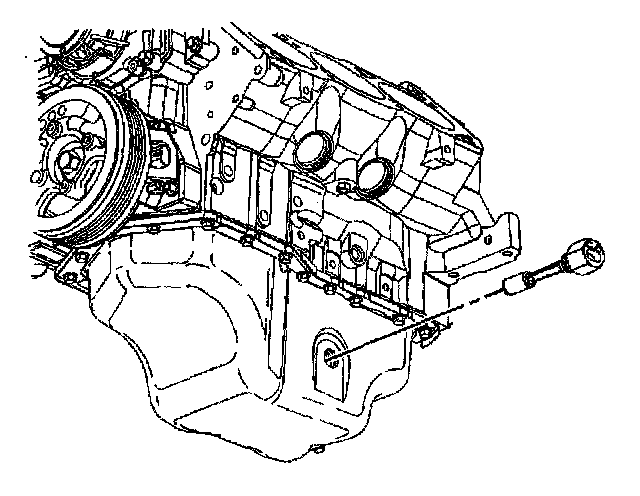

1. Install the oil level sensor to the oil pan.
Tighten the oil level sensor to 20 Nm (15 ft. lbs.).

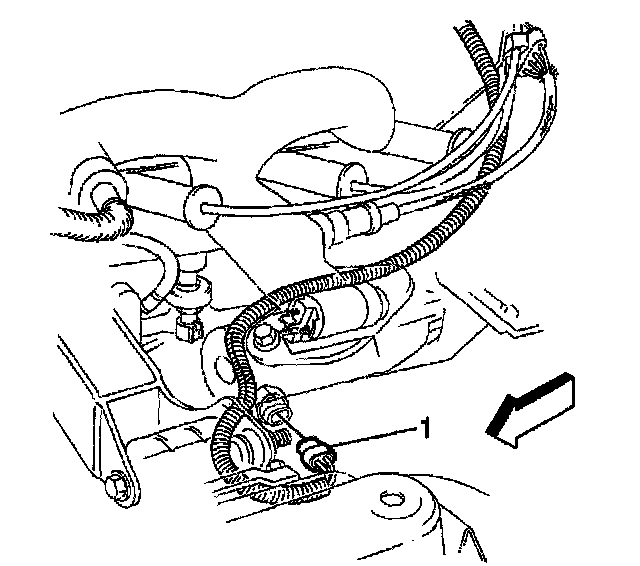

2. Connect the electrical connector (1) to the oil level sensor.

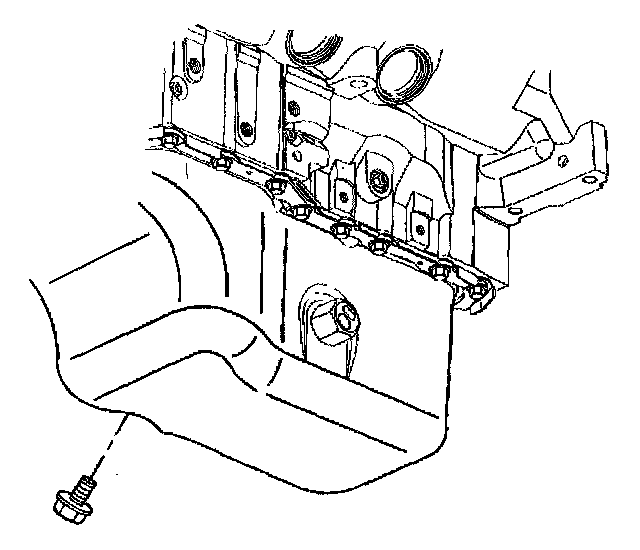

3. Install the engine oil drain plug.
Tighten the drain plug to 30 Nm (22 ft. lbs.).
4. Lower the vehicle.
5. Refill the engine with new engine oil.
6. Start the engine and inspect for oil leaks.
