Cruise Control Module, Shift Lock Control Module

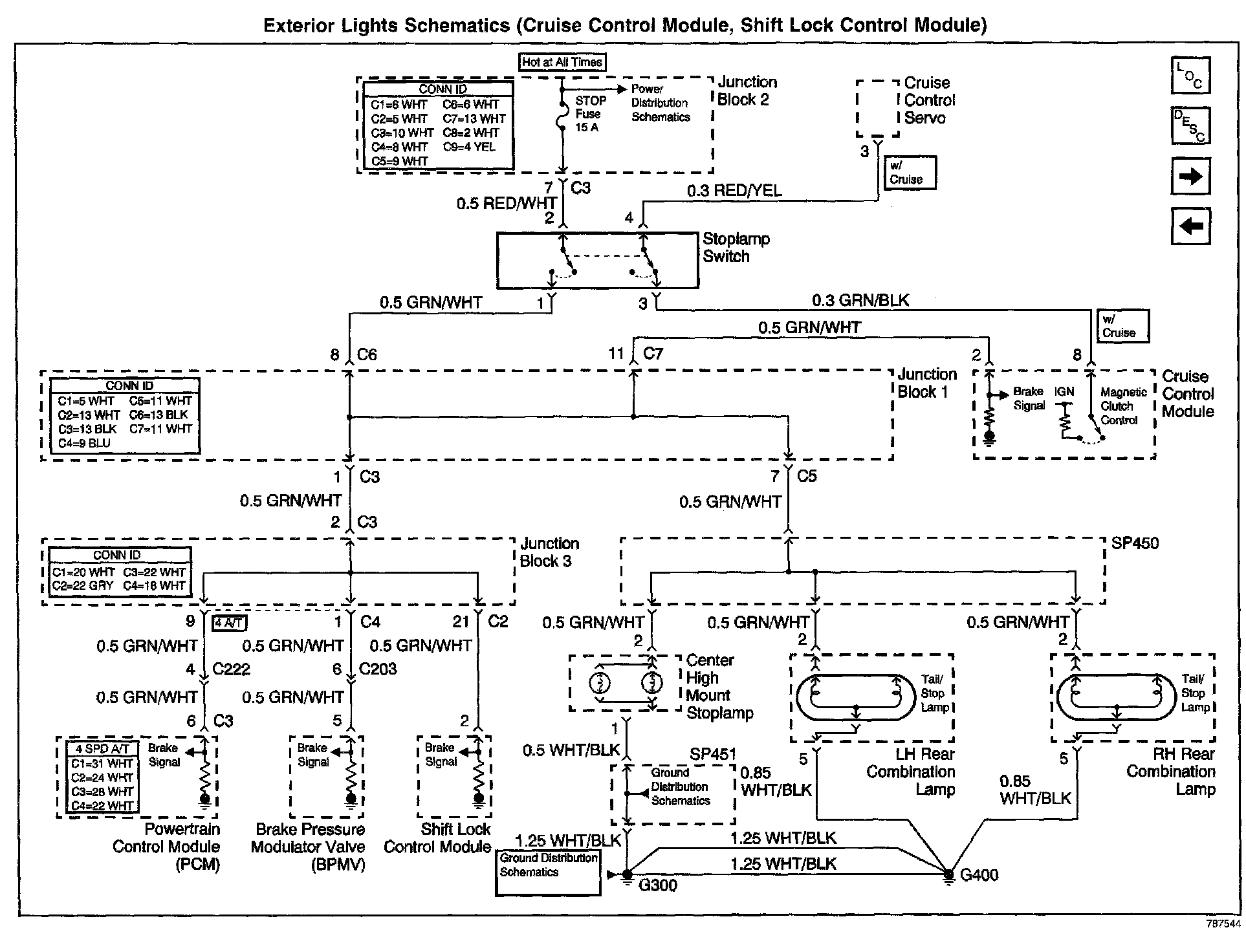

Exterior Lights Schematics: Cruise Control Module, Shift Lock Control Module:
