Crankshaft Position Sensor: Service and Repair

REMOVAL PROCEDURE




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the stone shield.
3. Disconnect the CKP sensor electrical connector.
4. Remove the one hold down bolt (2).

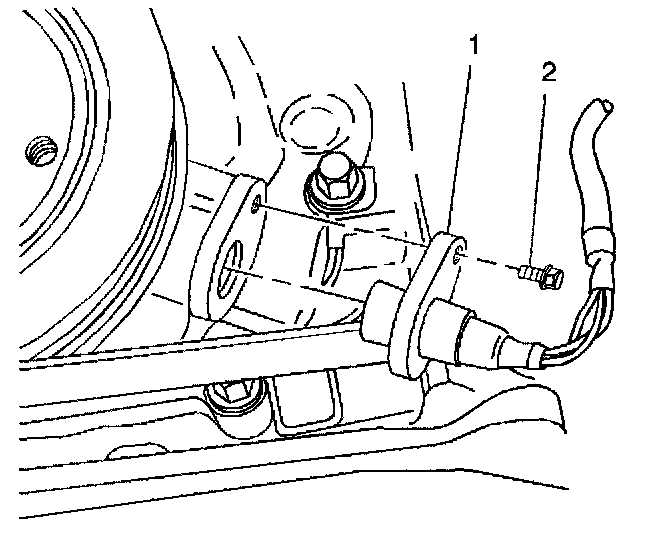

5. Remove the CKP sensor (1) from the front cover of the engine block.

INSTALLATION PROCEDURE




1. Install the CKP sensor (1) into the front cover of the engine block.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the CKP sensor hold down bolt (2).

Tighten
Tighten the hold down bolt to 9 N.m (80 lb in).

3. Install the stone shield.
4. Lower the vehicle.
5. Connect the CKP sensor electrical connector.
