Windshield Washer Reservoir: Service and Repair

WASHER SOLVENT CONTAINER REPLACEMENT

REMOVAL PROCEDURE
1. Open the hood.
2. Drain the washer solvent from the washer solvent container.
3. Remove the washer solvent container cap.
4. Remove the left front fender liner.

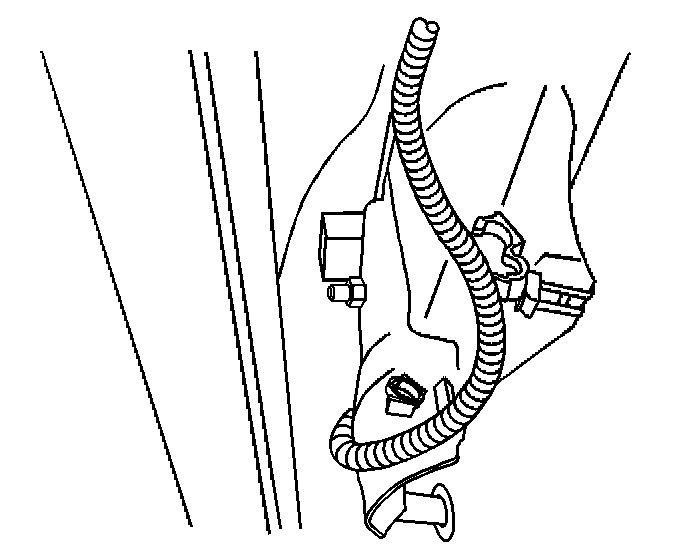

5. Disconnect the anti-lock brake electrical harness from the washer solvent container.

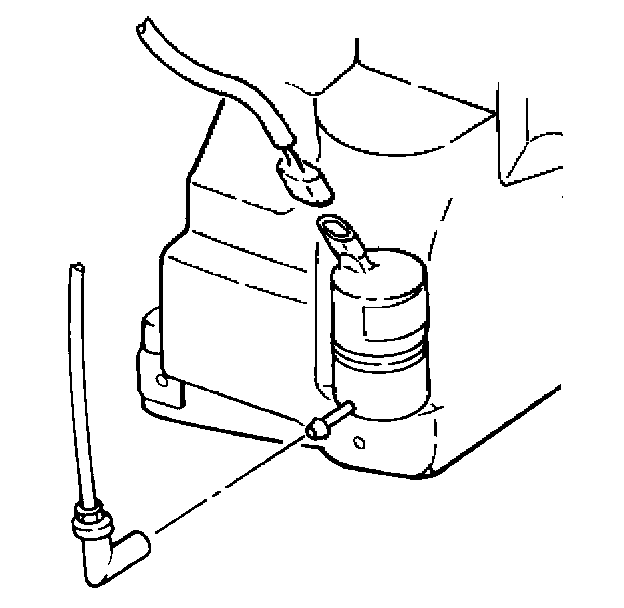

6. Disconnect the washer pump electrical connector.
7. Disconnect the washer pump hose.

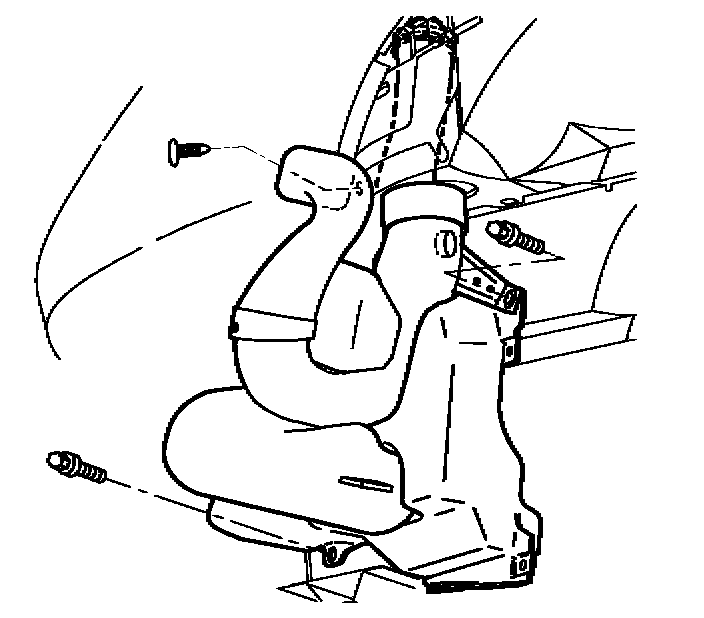

8. Remove the push-in retainer from the air induction tube.
9. Remove the washer solvent container screws.
10. Remove the washer solvent container from the vehicle.

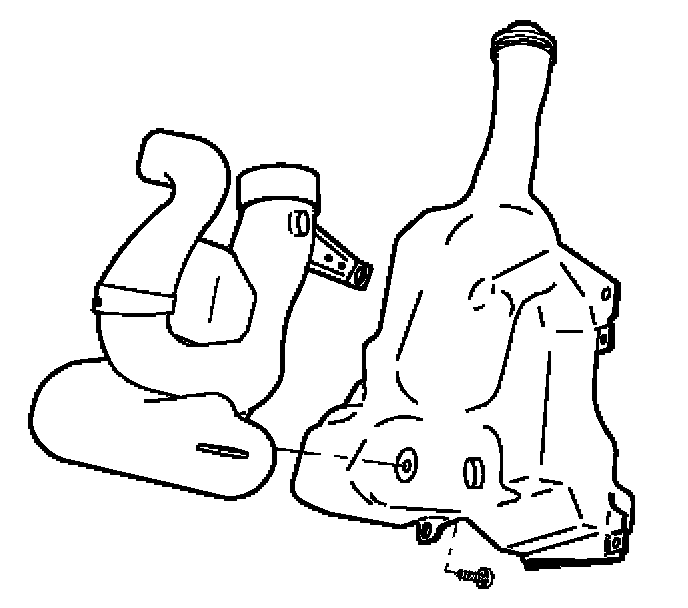

11. Remove the air induction tube screw.
12. Remove the air induction tube from the washer solvent container.

INSTALLATION PROCEDURE




1. Position the air induction tube to the washer solvent container.
2. Install the air induction tube screw.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screw to 3 N.m (27 lb in).




3. Position the washer solvent container to the vehicle.
4. Install the washer solvent container screws.

Tighten
Tighten the screws to 10 N.m (89 lb in).

5. Install the push-in retainer to the air induction tube.




6. Connect the washer pump hose.
7. Connect the washer pump electrical connector.

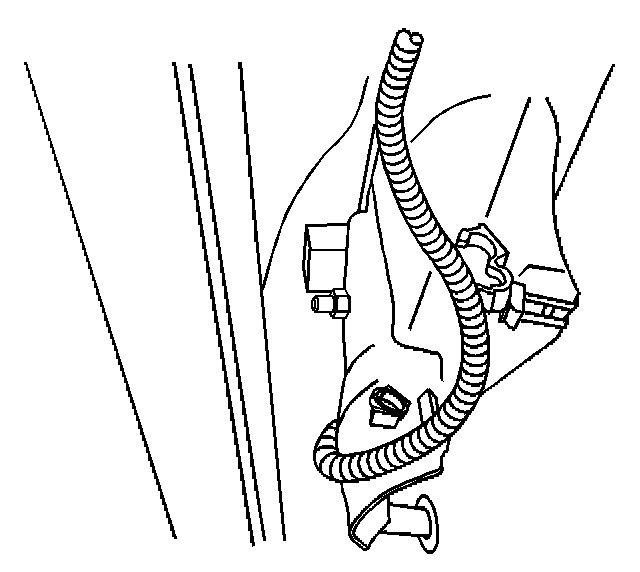

8. Connect the anti-lock brake electrical harness to the washer solvent container.
9. Install the front fender liner.
10. Lower the vehicle.
11. Install the washer solvent container cap.
12. Fill the washer solvent container with solvent.
13. Inspect the washer system for proper operation.
