Lock Replacement - Rear Door
LOCK REPLACEMENT - REAR DOORREMOVAL PROCEDURE
1. Remove the rear door trim panel.
2. Remove the rear door water deflector.
3. Remove the rear door outside handle rod from the lock.
4. Remove the rear door inside handle rods at the rear door handle.
5. Remove the clip securing the rear door inside handle rods from the rear door.

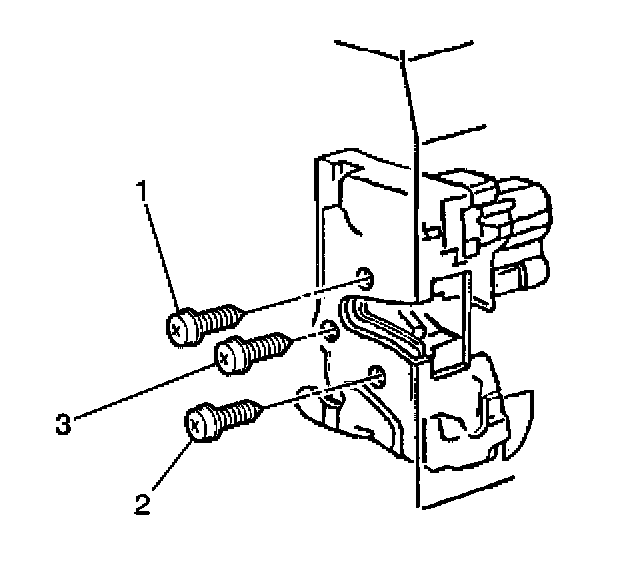

6. Remove the rear door lock screws (1).

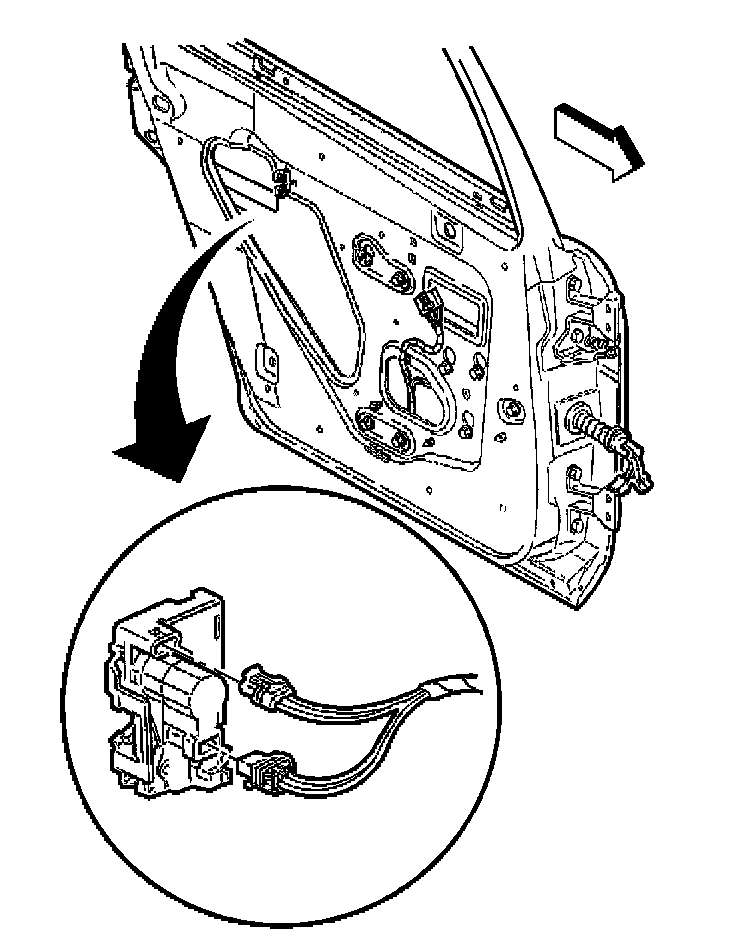

7. Remove the rear door lock from the rear door with the rear door inside handle rods attached to the lock.
8. Disconnect the electrical connector(s).
9. Remove the rear door inside handle rods from the rear door lock.
INSTALLATION PROCEDURE
1. Install the rear door inside handle rods to the lock.
2. Install the rear door lock in position through the access hole in the rear door inner panel.
3. Connect the electrical connectors.

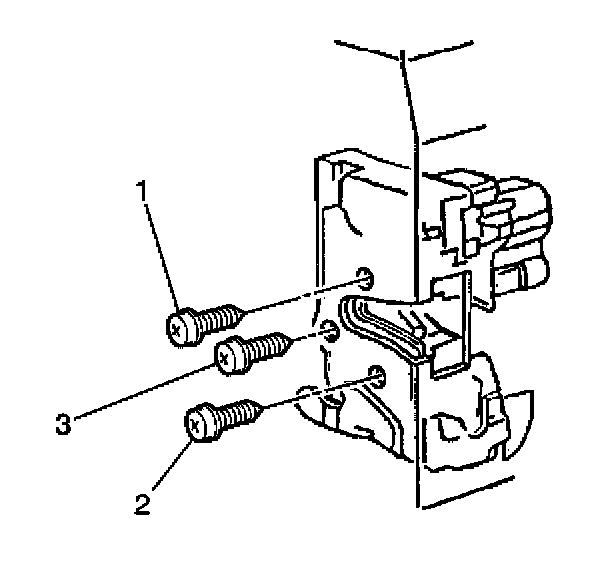

4. Install the rear door lock screws in the proper fastener tightening sequence as shown in graphic: top (1), bottom (2), middle (3).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the rear door lock screws to 10 N.m (89 lb in).
5. Install a NEW outside handle rod-to-lock clip onto the rear door lock lever.
5.1. Position the rear door outside door handle rod in the clip to eliminate any free play in the rear door outside door handle.
5.2. Install the clip cover closed over the threaded rear door outside door handle rods.
6. Install the clip to the rear door inside handle rods.
7. Install the rear door inside handle rods to the rear door inside door handle.
8. Install the rear door water deflector.
9. Install the rear door trim panel.
10. Inspect the lock system for proper operation.
