Lumbar Switch Replacement
LUMBAR SWITCH REPLACEMENTREMOVAL PROCEDURE
1. Remove the outer seat cushion trim panel.

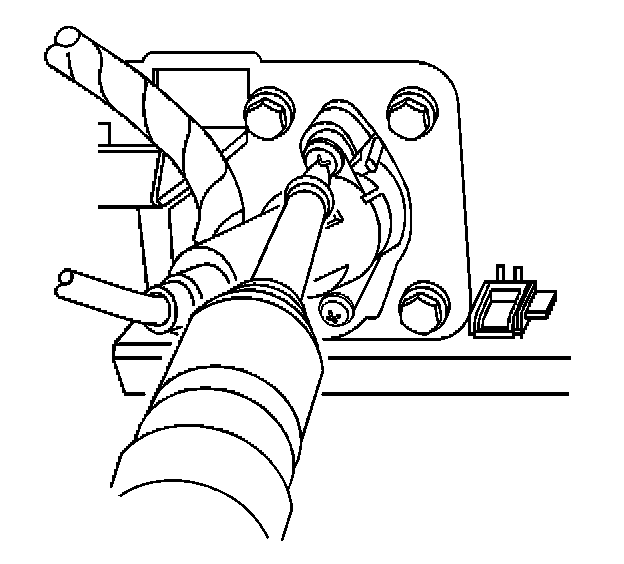

2. Remove the screws from the lumbar control switch.
3. Remove the lumbar control switch from the outer seat cushion trim panel.
INSTALLATION PROCEDURE
1. Position the lumbar control switch to the outer seat cushion trim panel.

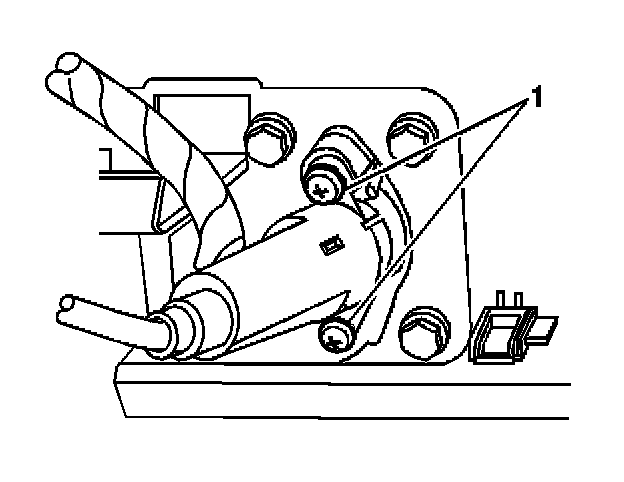

2. Install the screws (1) to the lumbar control switch.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to 2 N.m (18 lb in).
3. Install the outer seat cushion trim panel.
