Positive Crankcase Ventilation: Service and Repair

Positive Crankcase Ventilation (PCV) Valve Replacement

Removal Procedure

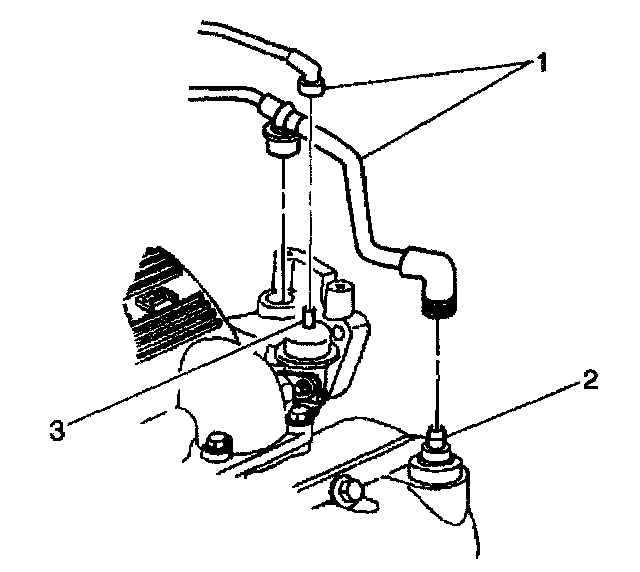

1. Remove the vacuum hoses (1) from the fuel pressure regulator (3) and the Positive Crankcase Ventilation (PCV) valve (2).
2. Remove the PCV valve (2).

Installation Procedure

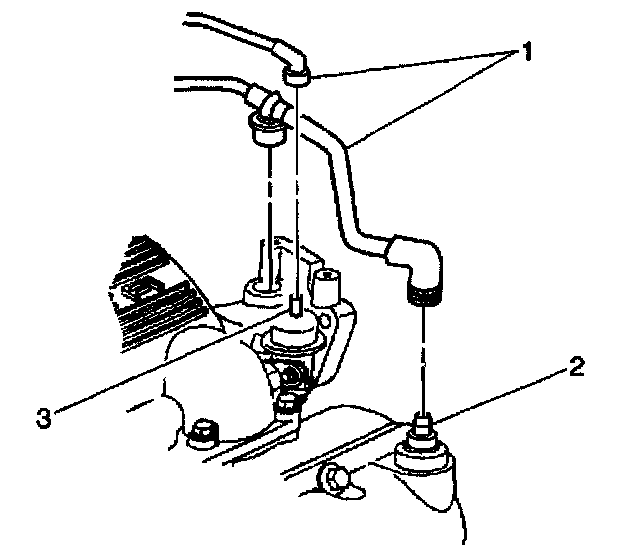

1. Install the PCV valve (2).
2. Install the vacuum hoses (1) to the fuel pressure regulator (3) and the PCV valve (2).
