Home >> Chevrolet >> 2004 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Lamp Driver Module (DBC7 ABS)

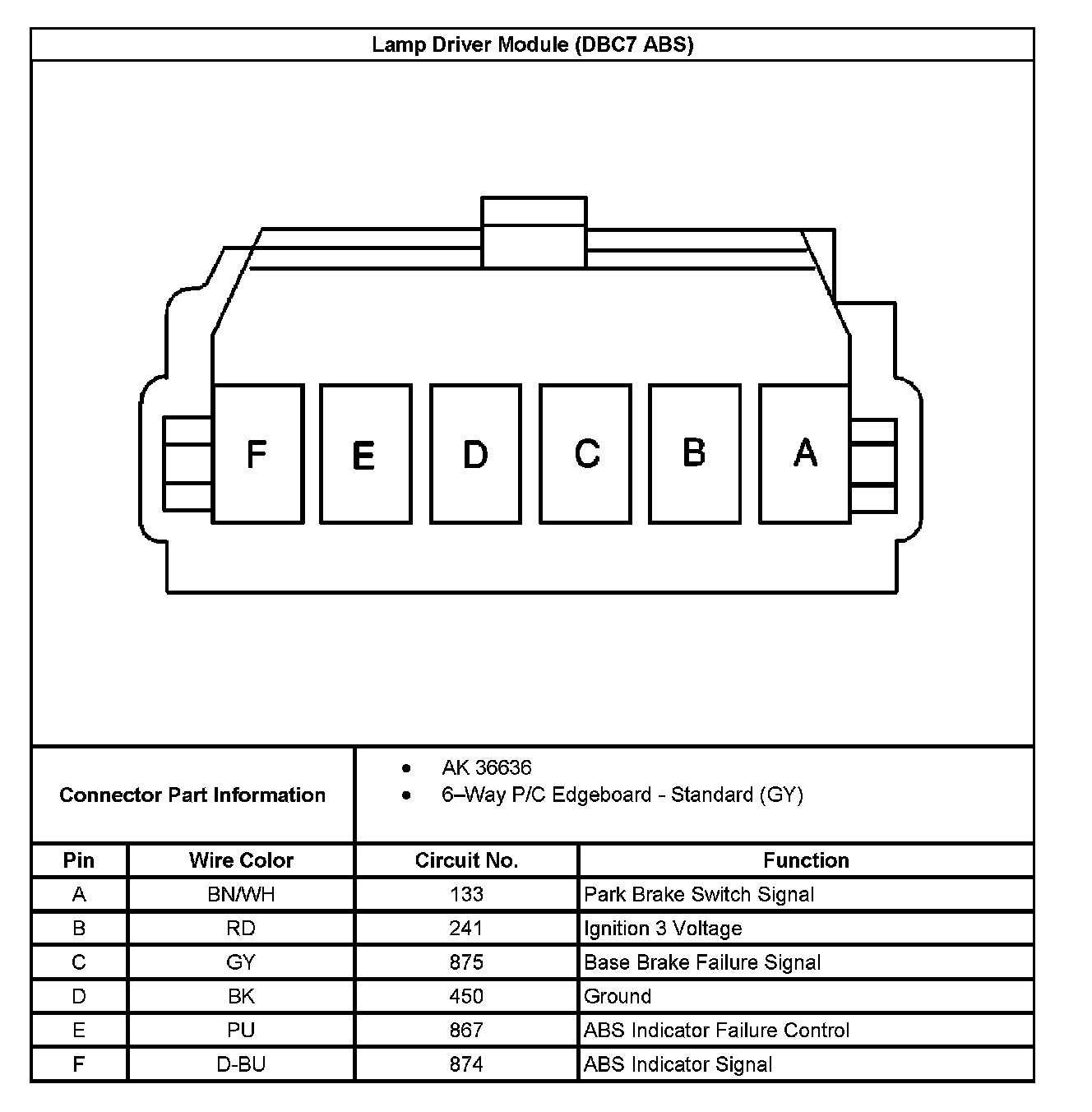

Lamp Driver Module (DBC7 ABS)
