Headlamp Alignment Switch

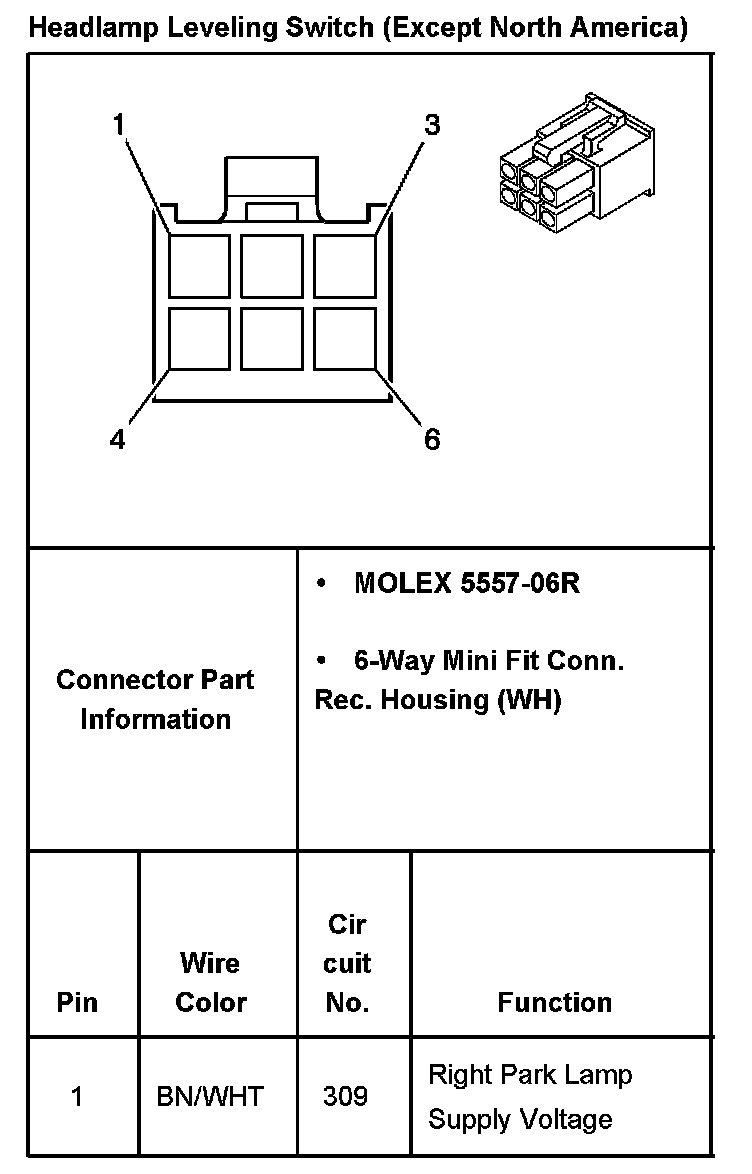

Headlamp Leveling Switch (Except North America) Part 1:

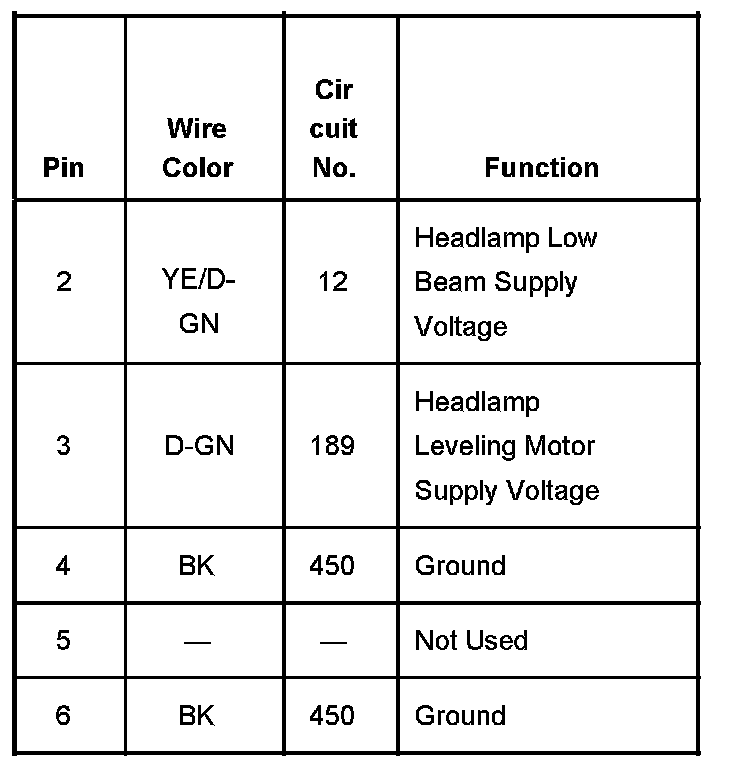

Headlamp Leveling Switch (Except North America) Part 2:
