Air Register: Service and Repair

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the instrument panel center upper cover.

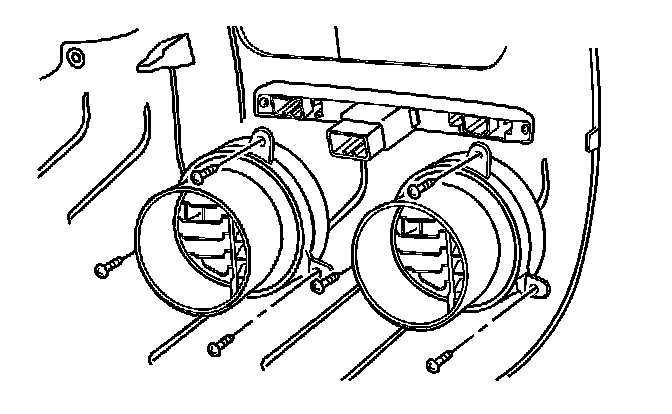

3. Remove the screws and the air deflectors.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the air deflectors with the screws.

Tighten
Tighten the air deflector screws to 2 N.m (18 lb in).

2. Install the instrument panel center upper cover.
3. Connect the negative battery cable.
