Power and Ground Distribution
>>
Auxiliary Power Outlet
>>
Diagrams
>>
Connector Views
Connector Views

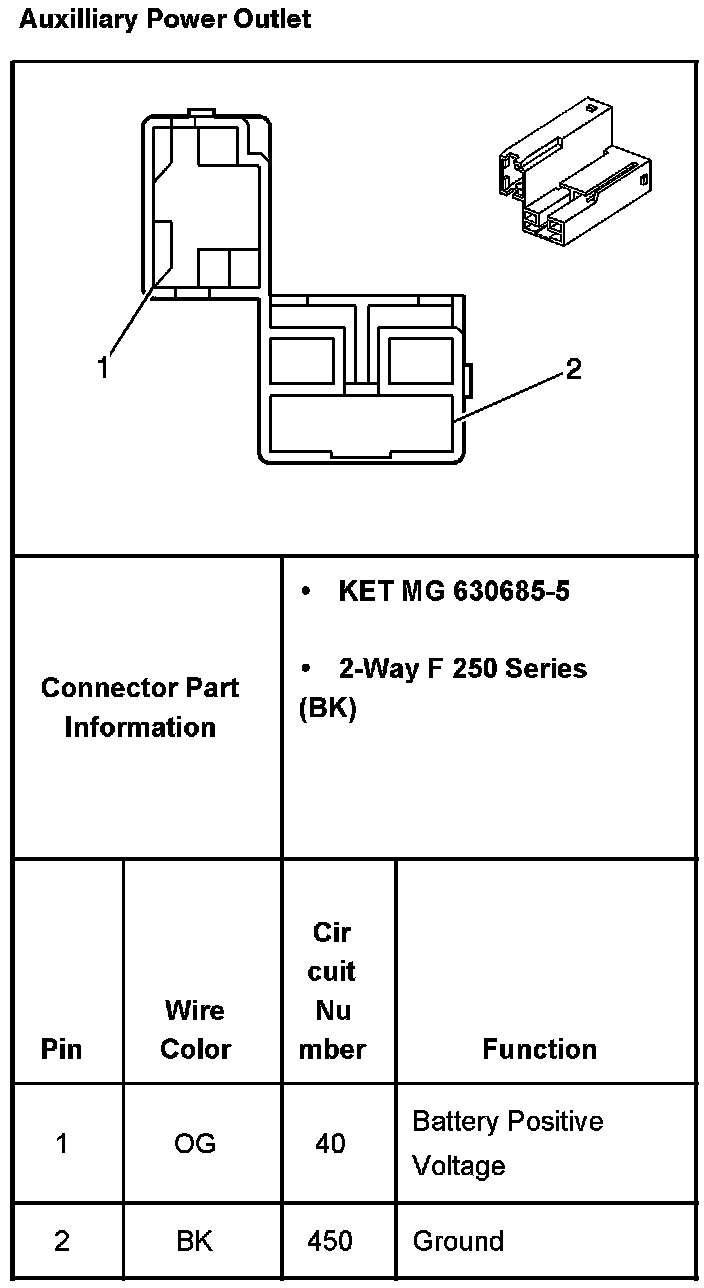

Auxilliary Power Outlet:
