Antenna Control Module: Service and Repair

ANTENNA MODULE REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the interior courtesy lamp.
3. Remove the screw from the vehicle inside.

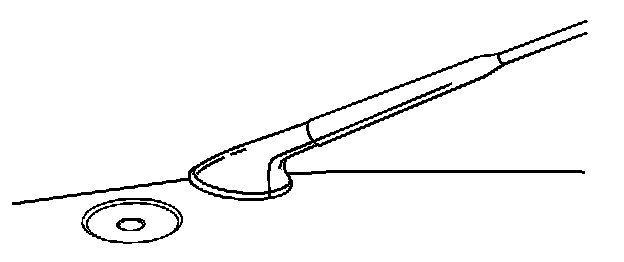

4. Remove the roof antenna.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

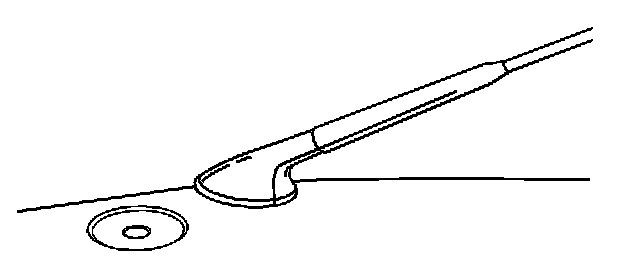

1. Install the roof antenna with the screw.

Tighten
Tighten the roof antenna retaining screws to 3 N.m (27 lb in).

2. Install the interior courtesy lamp.
3. Connect the negative battery cable.
