Defogger Outlet Duct Replacement - Side Window, RH
DEFOGGER OUTLET DUCT REPLACEMENT - SIDE WINDOW, RHREMOVAL PROCEDURE
1. Remove the instrument panel I/P carrier.

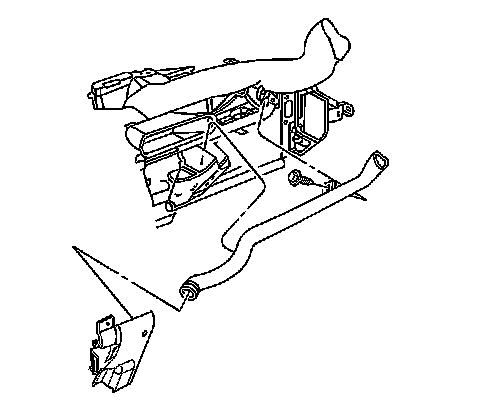

2. Remove the right defogger outlet duct bolt from the air distribution duct.
3. Remove the right defogger outlet duct retainer from the tie bar bracket.
4. Remove the right defogger outlet duct from the vehicle.
INSTALLATION PROCEDURE
1. Install the right defogger outlet duct through the tie bar bracket.
2. Install the right defogger outlet duct retainer to the tie bar bracket.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the right defogger outlet duct bolt to the air distribution duct.
Tighten the bolt to 2 N.m (18 lb in).
4. Install the I/P carrier.
