Fog/Driving Lamp Switch: Service and Repair

FOG LAMP SWITCH REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the trim plate from the instrument panel (IP) cluster.

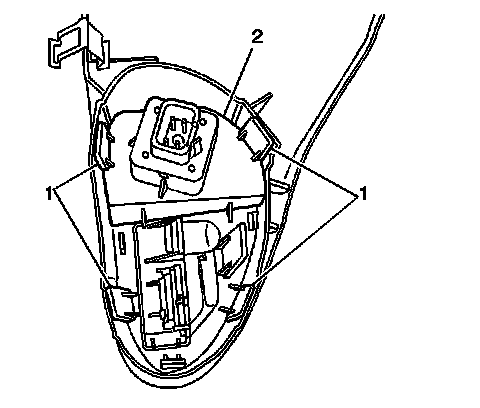

2. Remove the fog lamp/dimmer switch (2) from the trim panel by releasing the tabs (1) with a small flat bladed tool.

INSTALLATION PROCEDURE




1. Install the fog lamp/dimmer switch (2) to the trim panel, ensure that the retaining tabs (1) are seated.
2. Install the trim panel to the IP.
