Torque Converter Cover: Service and Repair

Torque Converter Cover Replacement

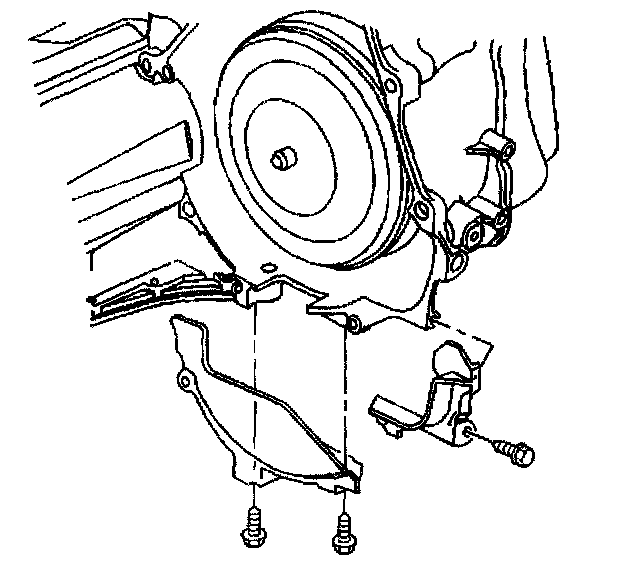

Removal Procedure
1. Raise and support the vehicle.





Notice: Refer to Fastener Notice in Service Precautions.

2. Remove the torque converter cover bolts
3. Remove the torque converter covers.

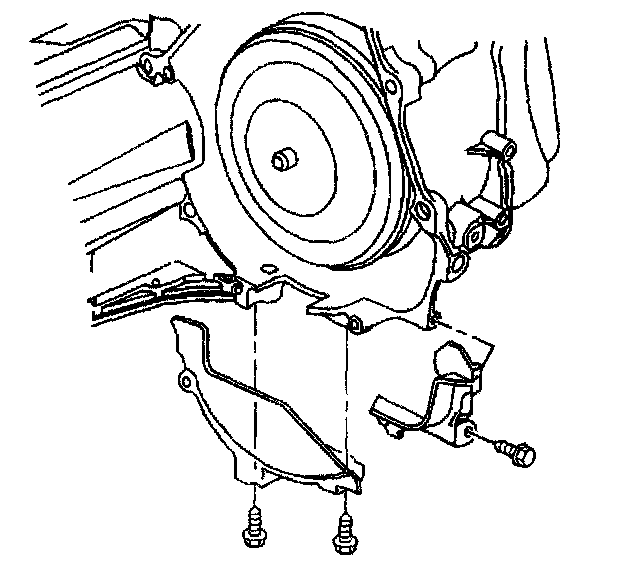

Installation Procedure
1. install the torque converter covers.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the torque converter cover bolts
Tighten the bolts to 10 Nm (89 inch lbs.).
3. Lower the vehicle.
