Transmission Pressure Test Port: Service and Repair

Oil Pressure Test Plug Replacement

Removal Procedure
1. Remove the air cleaner intake duct.

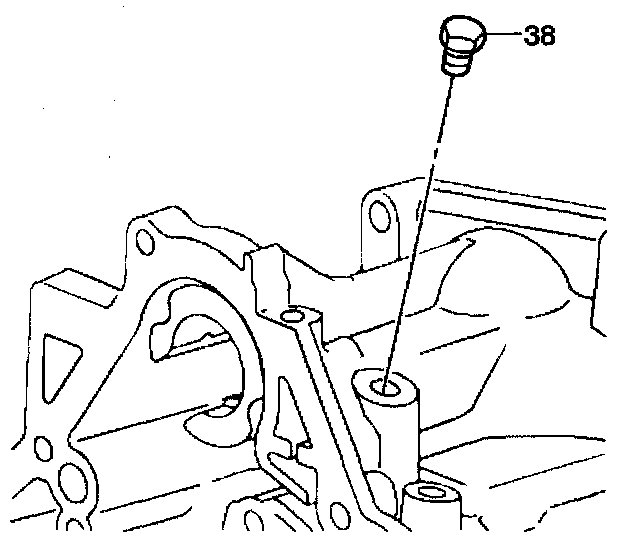

2. Remove the line pressure pipe plug (38).

Installation Procedure
1. Apply GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the line pressure pipe plug.





Notice: Refer to Fastener Notice in Service precautions.

2. Install the line pressure pipe plug (38).
Tighten the plug to 12 Nm (106 inch lbs.).
3. Install the air cleaner intake duct.
