Traction Control Switch: Service and Repair

Traction Control Switch Replacement

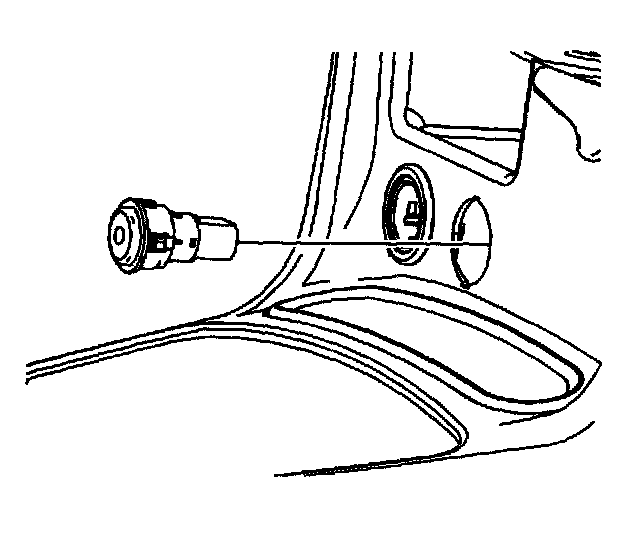

Removal Procedure





1. Remove the left console trim panel.
2. Remove the traction control switch from behind the console.
3. Remove the traction control switch wire harness connector.

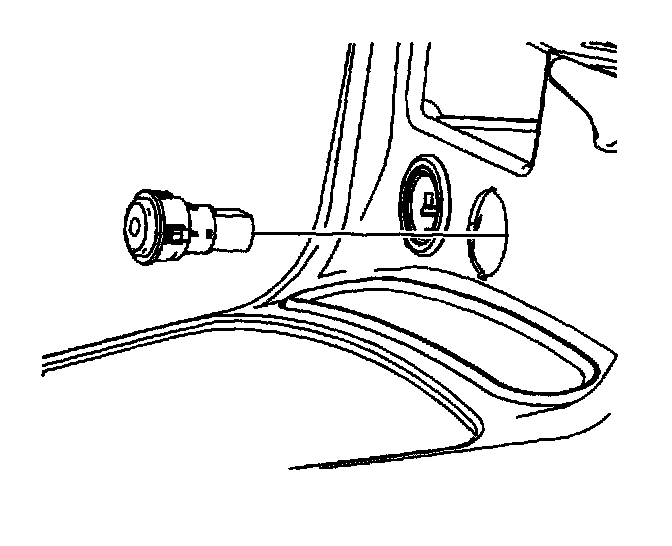

Installation Procedure





1. Install the traction control switch wire harness connector.
2. Install the traction control switch.
3. Install the left console trim panel.
