Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR REPLACEMENT

REMOVAL PROCEDURE

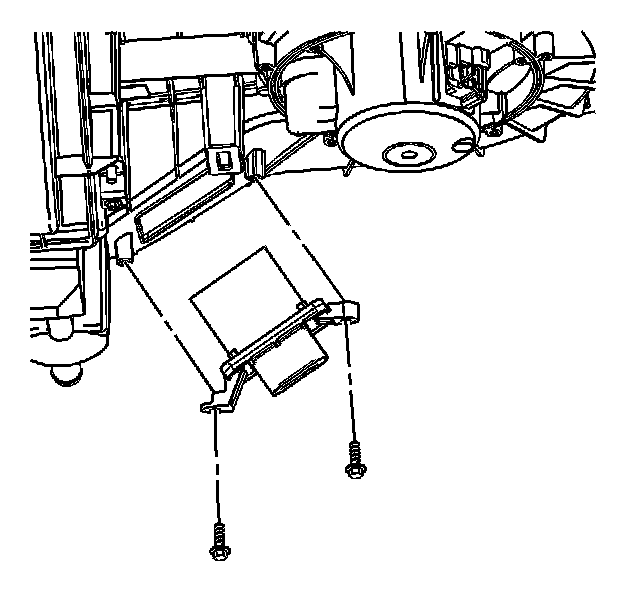

1. Remove the right closeout panel.
2. Remove the blower motor resistor wire harness connector.
3. Remove the blower motor resistor screws.




4. Remove the blower motor resistor.

INSTALLATION PROCEDURE




1. Install the blower motor resistor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Tighten the blower motor resistor screws.

Tighten
Tighten the screws to 1.5 N.m (13 lb in).

3. Install the blower motor resistor wire harness connector.
4. Install the right closeout panel.
