Bezel Replacement - Front Door Switch

BEZEL REPLACEMENT - FRONT DOOR SWITCH

REMOVAL PROCEDURE
1. Remove the front door trim panel.

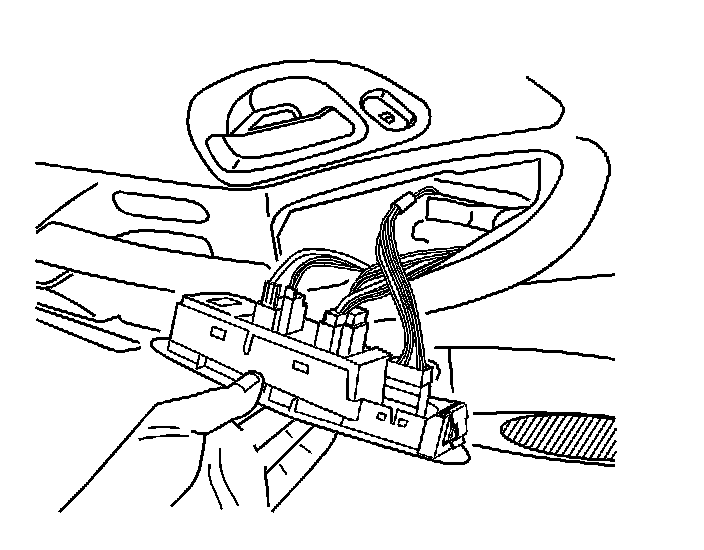

2. Release the tabs and push the switch bezel out of the trim panel.




3. Disconnect the electrical connectors from the switches.
4. Remove the switches from the bezel.

INSTALLATION PROCEDURE




1. Install the switches to the bezel.
2. Connect the electrical connectors to the switches.

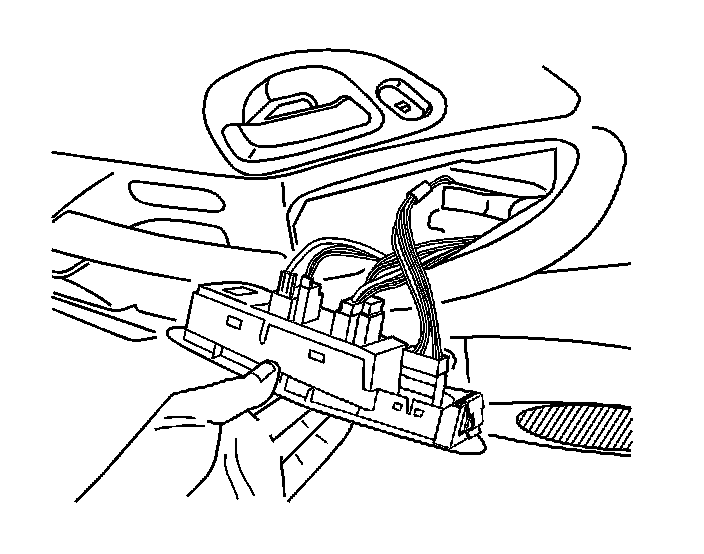

3. Install the switch bezel to the door trim.
4. Install the front door trim panel.
