Home >> Chevrolet >> 2004 >> Malibu V6-3.5L VIN 8 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations

Air Bag Control Module: Locations

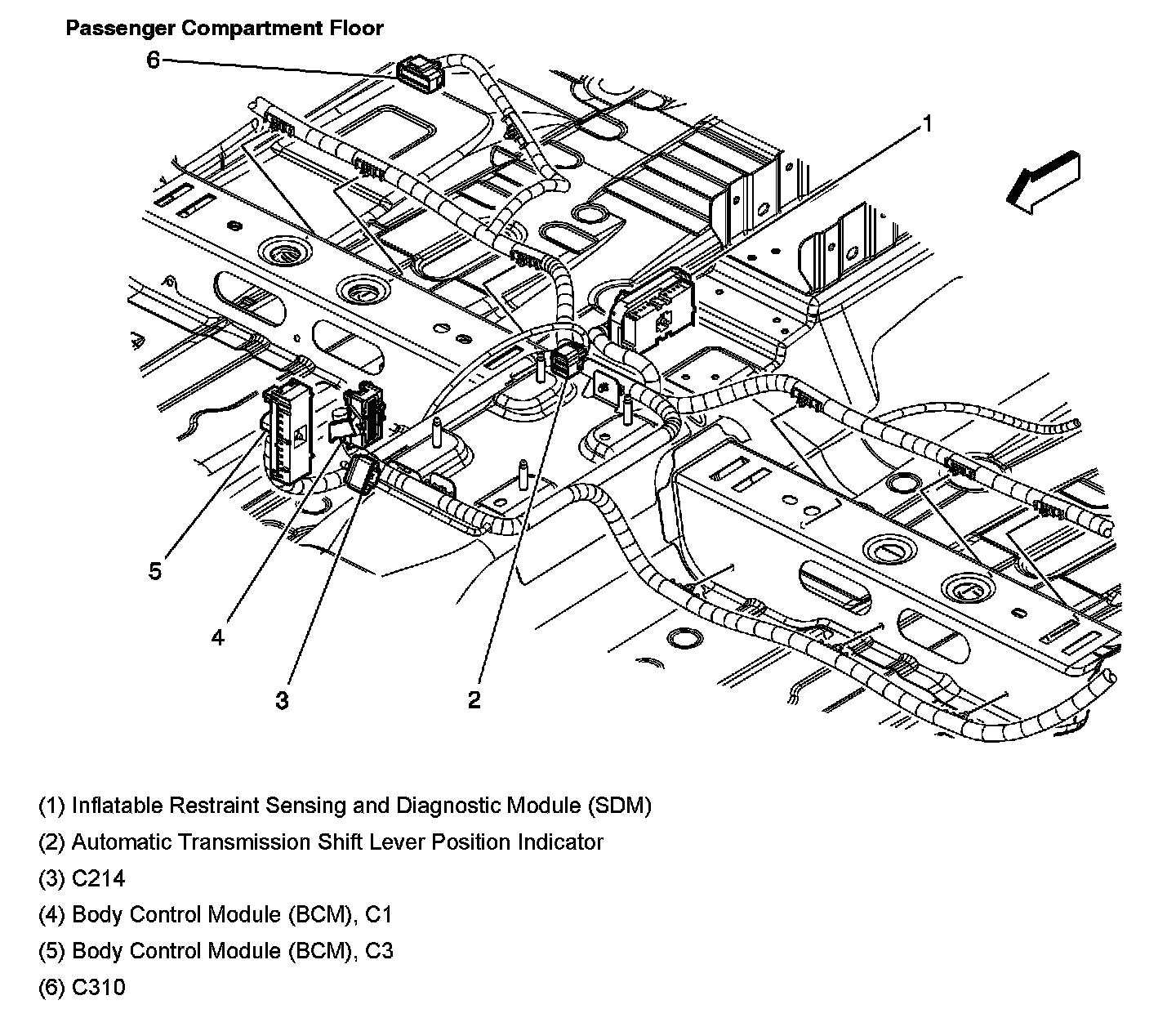

Passenger Compartment Floor:

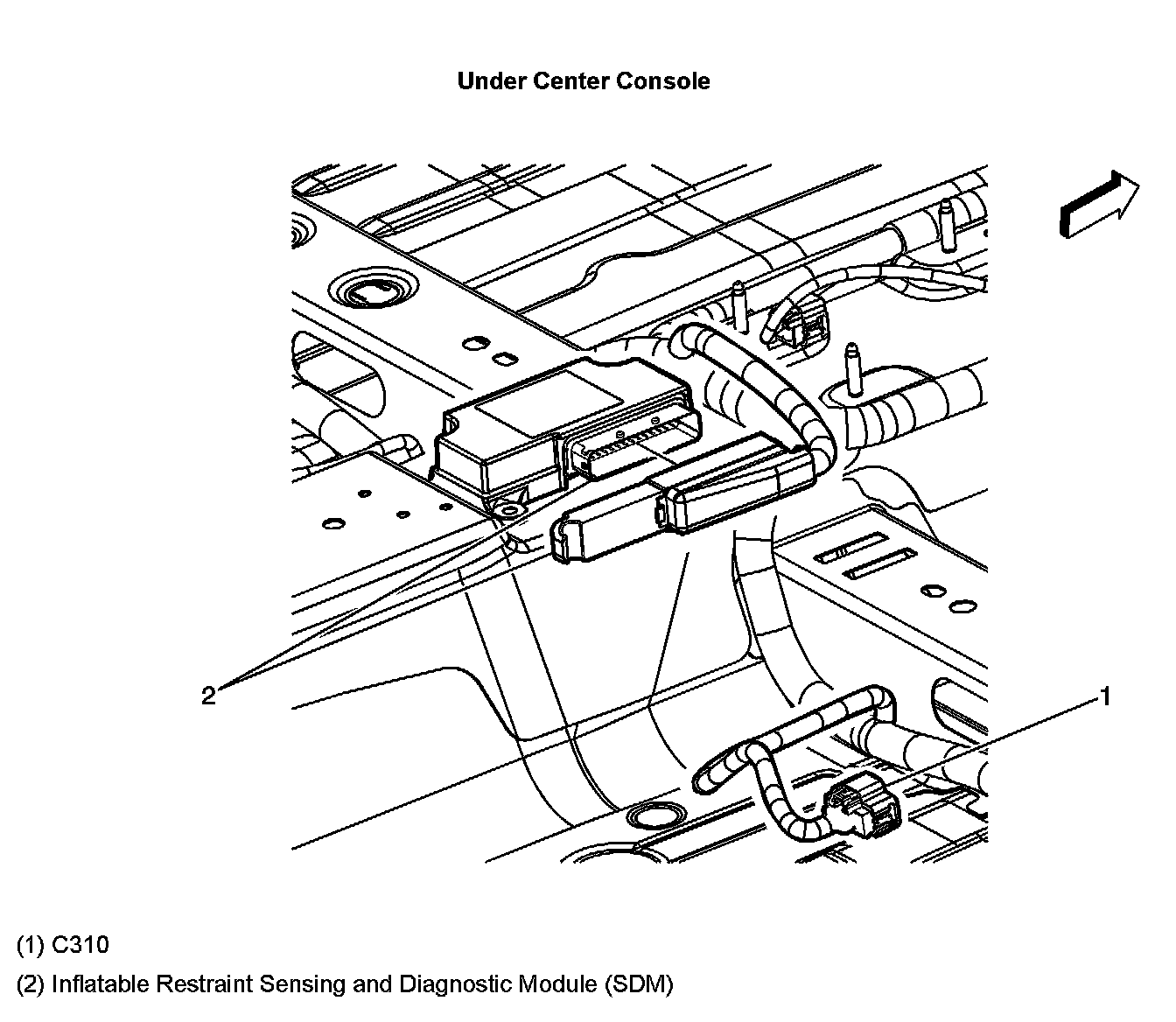

Under Center Console:
