Keyless Entry - Remote Key Fob Comes Apart

Bulletin No.: 04-08-52-007

Date: November 09, 2004

TECHNICAL

Subject:
Remote Keyless Entry (RKE) Key Fob Comes Apart and Key Fob Screw Is Missing (Install New Screw)

Models:
2004-2005 Chevrolet Aveo, Epica, Optra
2005 Pontiac Wave

Condition

Some customers may comment that the screw holding the two halves of their RKE key fob is missing and that the key fob is coming apart.

Correction

Important:
DO NOT replace the RKE transmitter for this condition. Install a new screw to secure the two halves of the key fob.

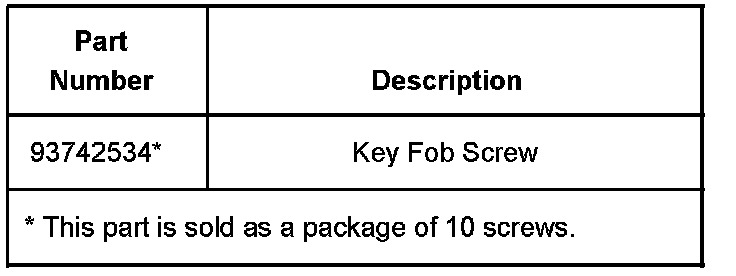

Parts Information

Parts are expected to be available from GMSPO on 11/22/04.

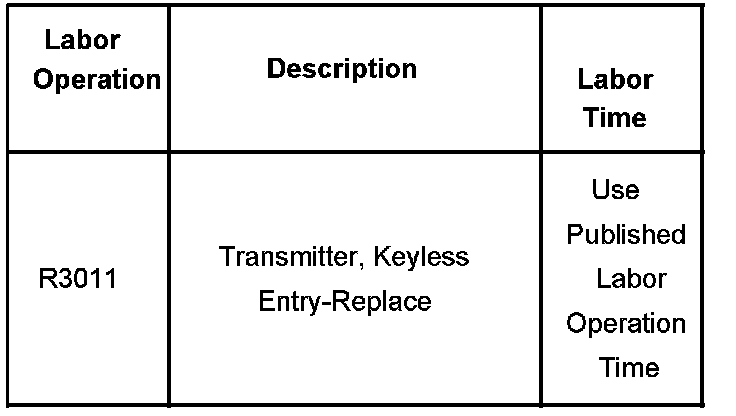

Warranty Information





For vehicles repaired under warranty, use the table.
