Brake Lamp
Brake Lamp

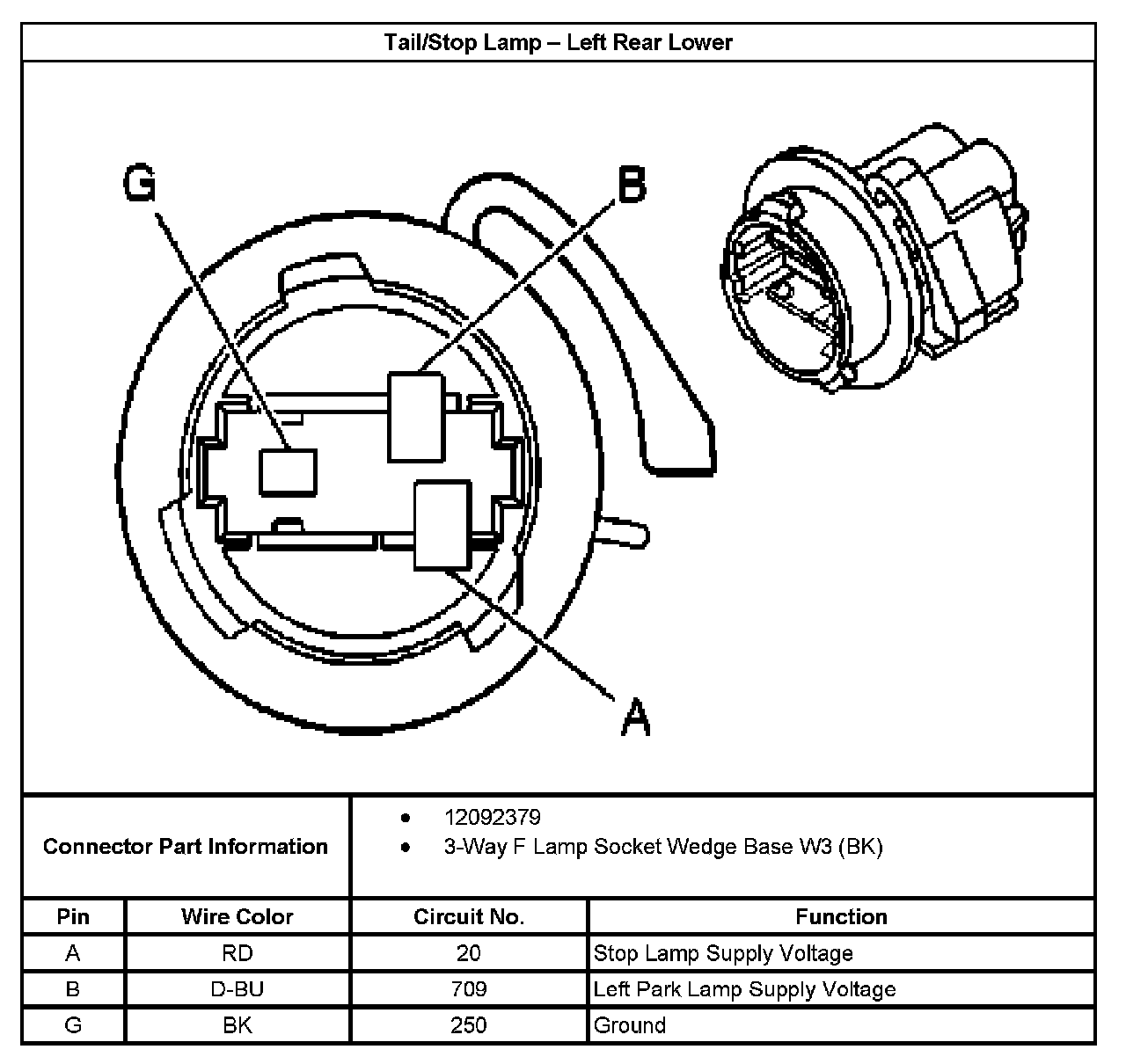

Tail/Stop Lamp - Left Rear Lower:

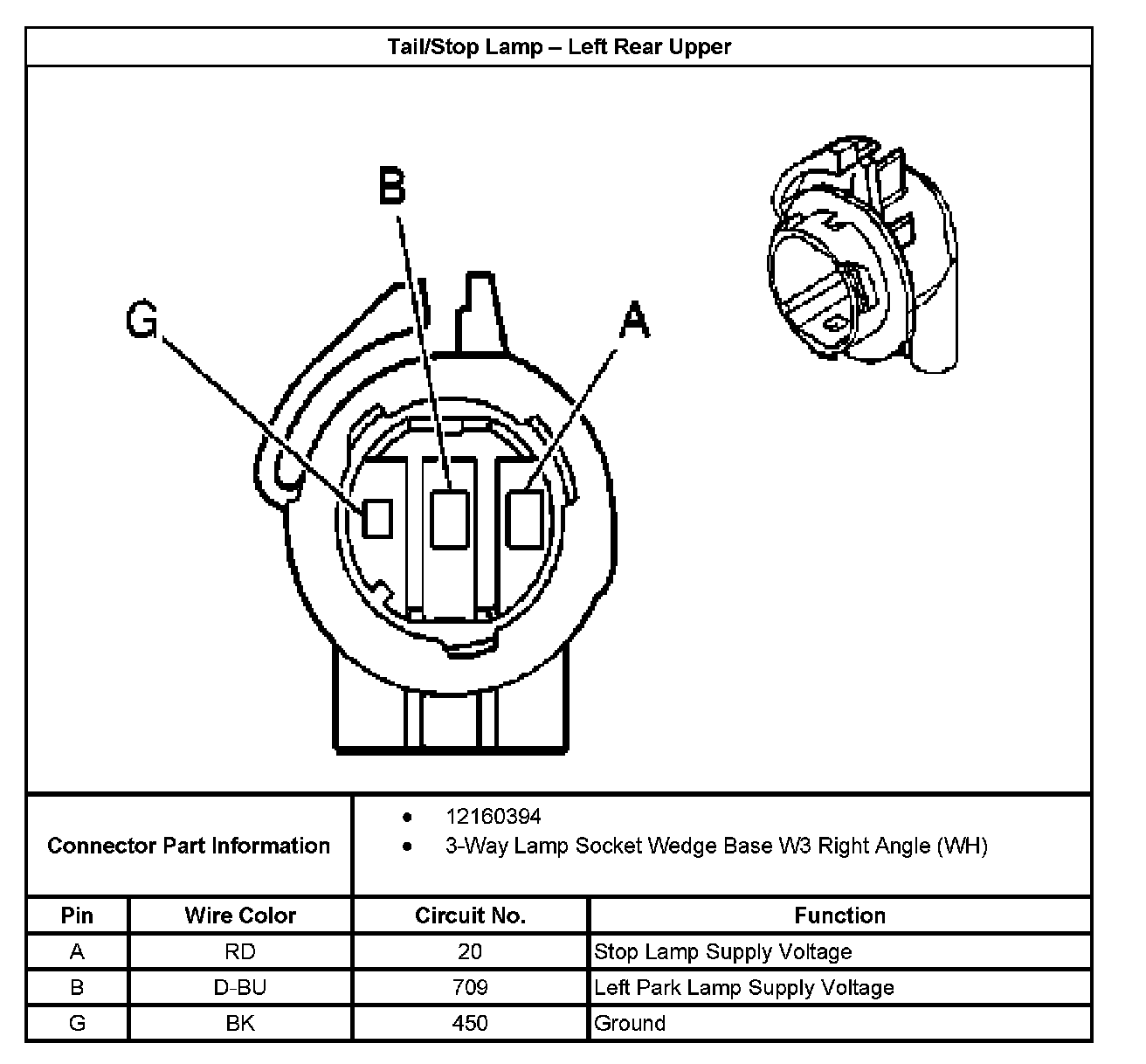

Tail/Stop Lamp - Left Rear Upper:

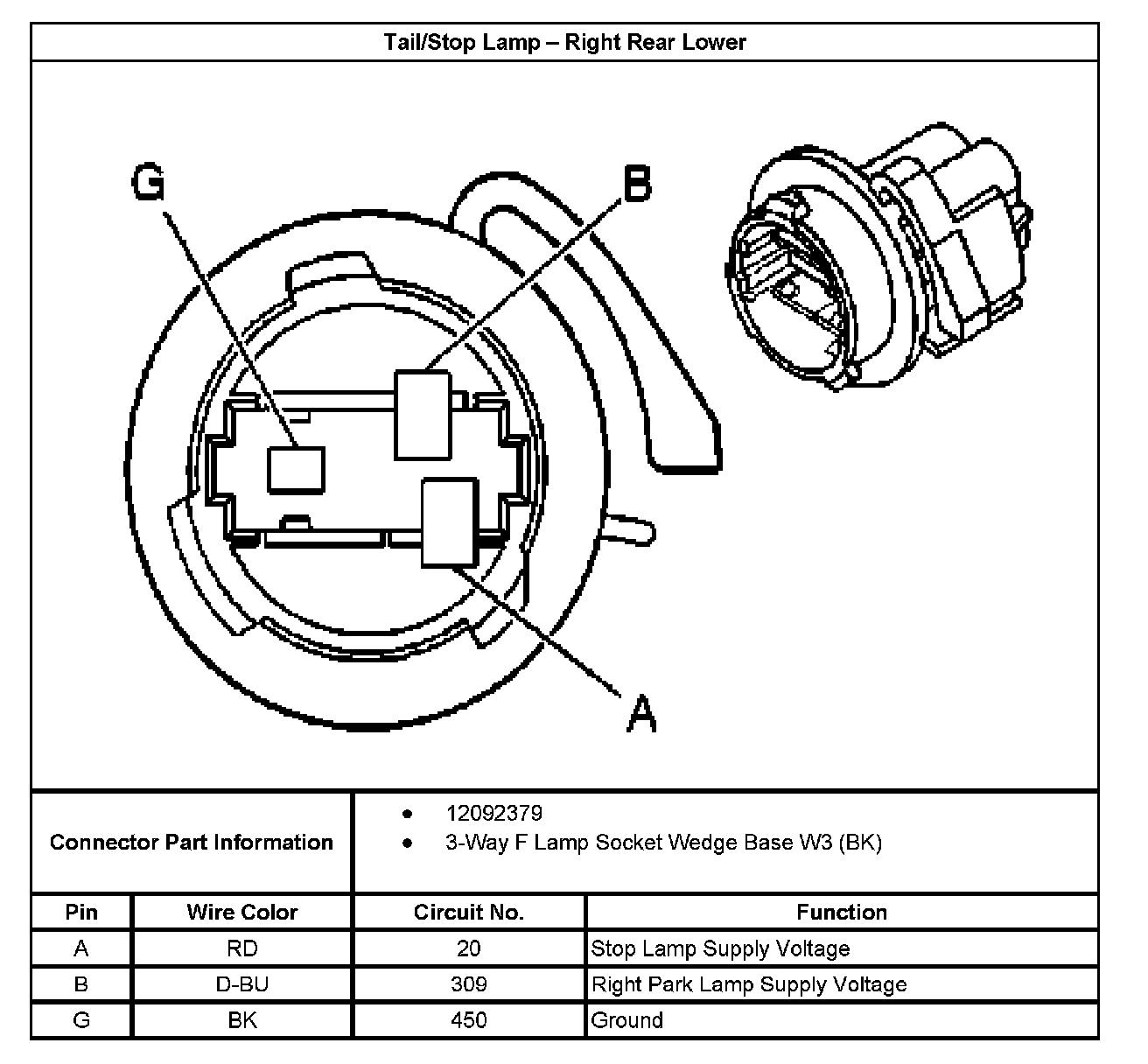

Tail/Stop Lamp - Right Rear Lower:

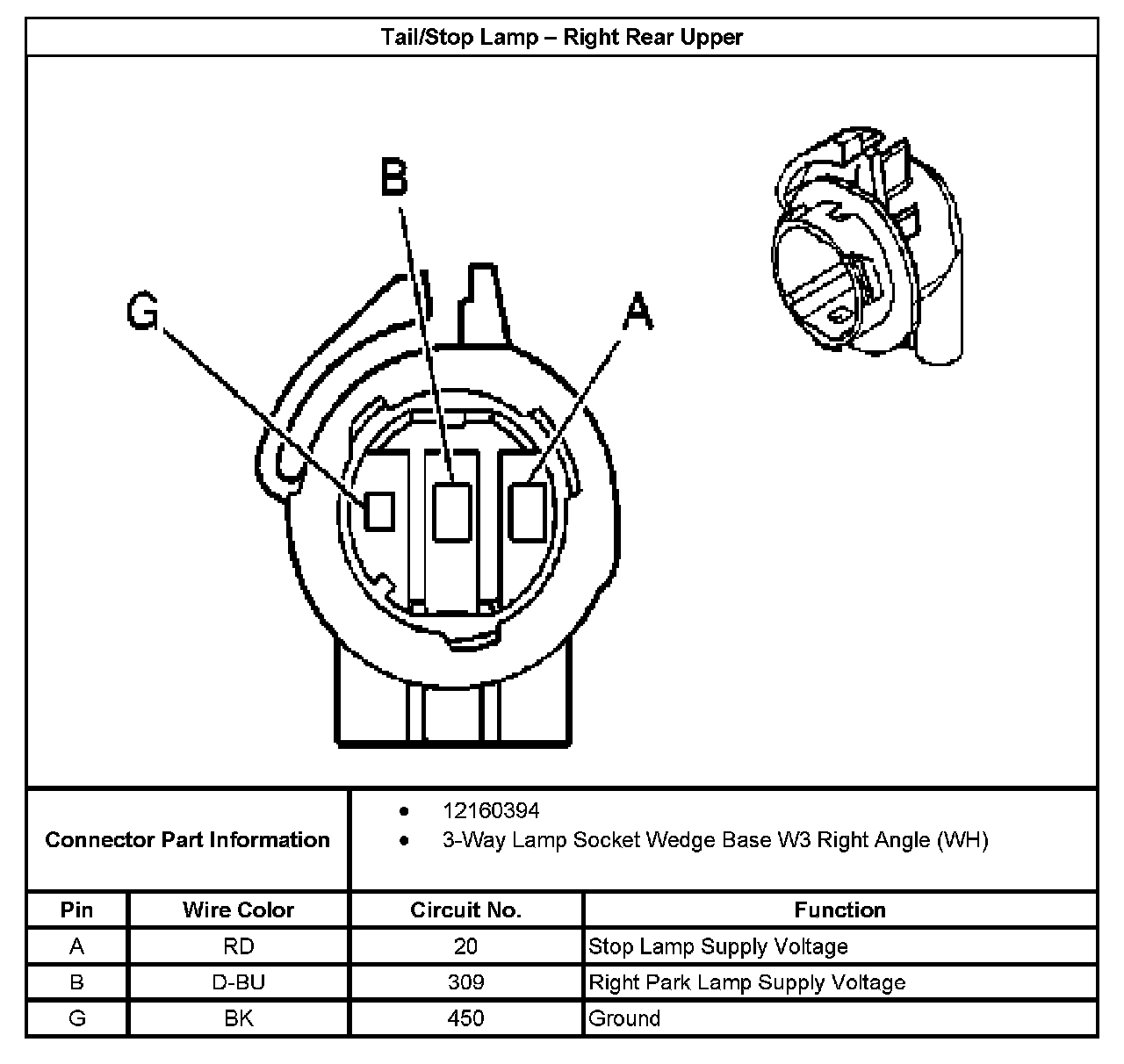

Tail/Stop Lamp - Right Rear Upper:
