Power Mirror Switch
Power Mirror Switch

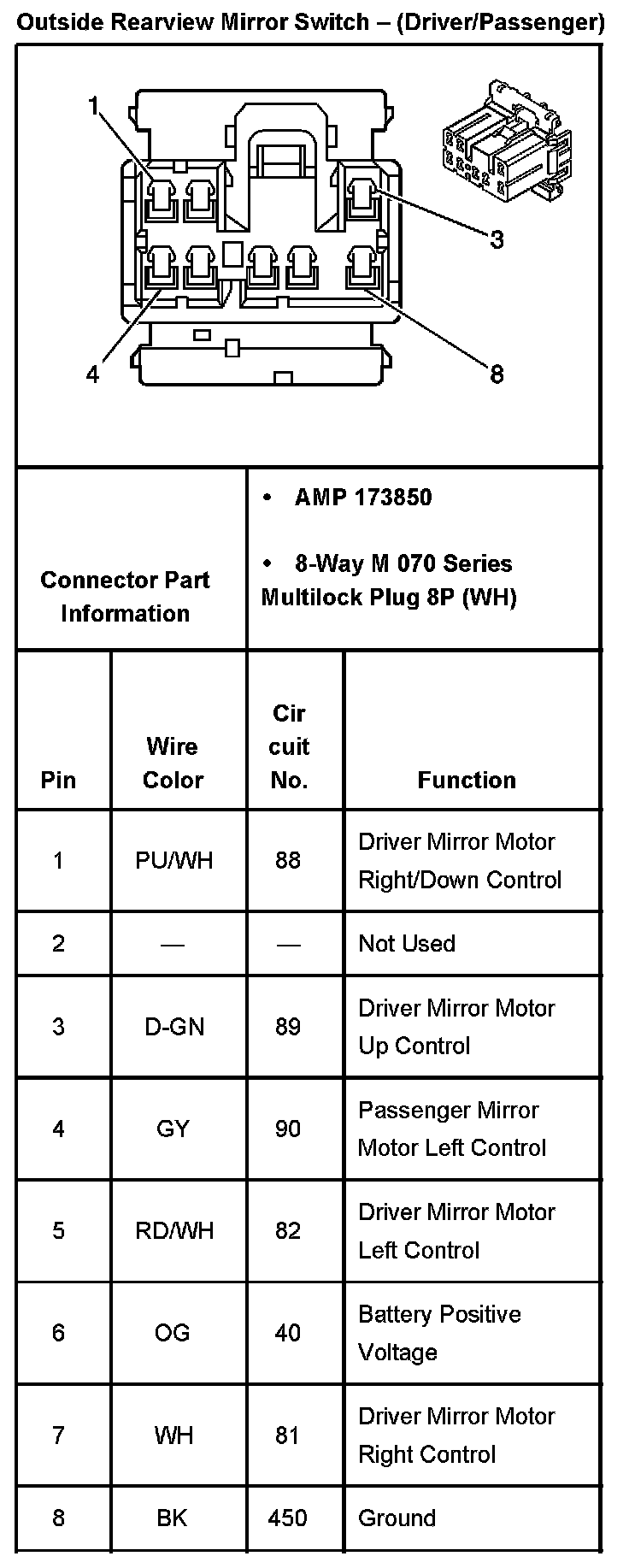

Outside Rearview Mirror Switch - (Driver/Passenger):

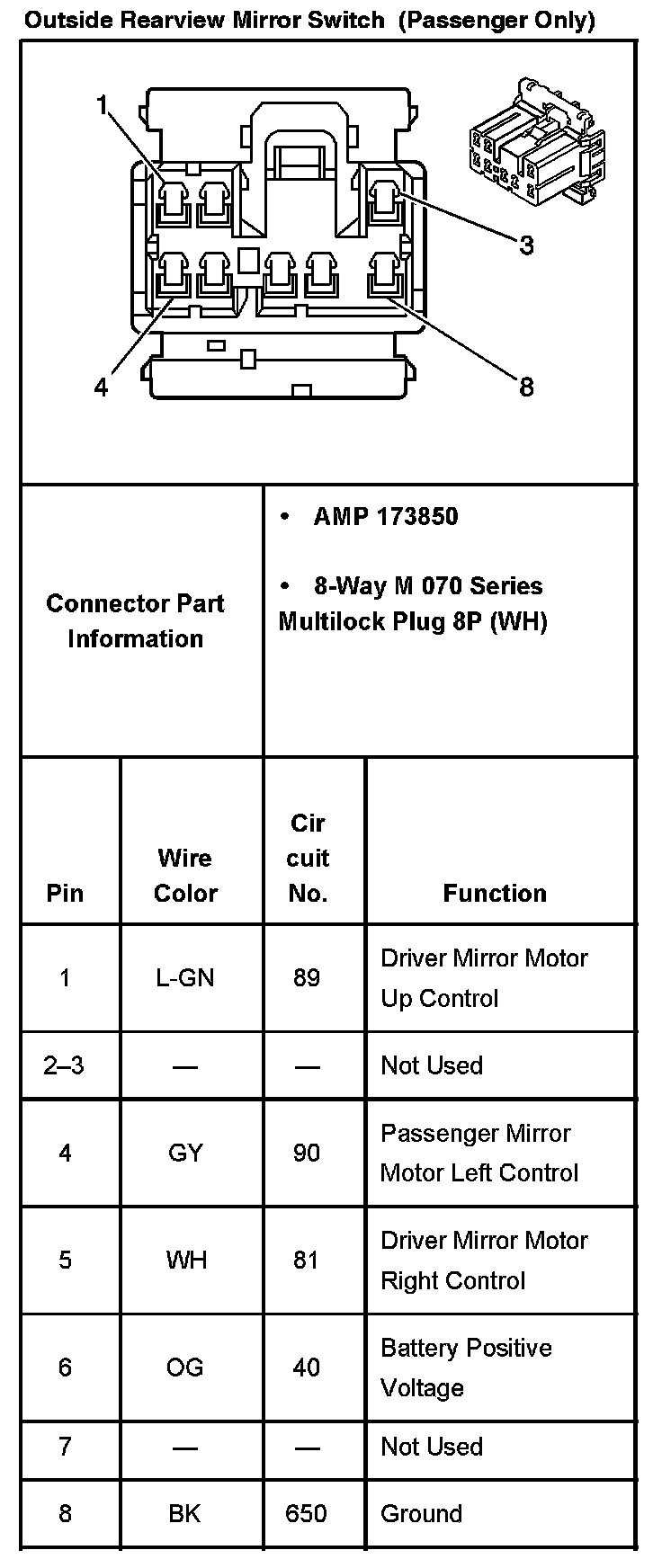

Outside Rearview Mirror Switch - (Passenger Only):
