Front Bumper Reinforcement: Service and Repair

Impact Bar Replacement - Front Bumper

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front fascia.




3. Disconnect the wiring harness and components from the font impact beam.

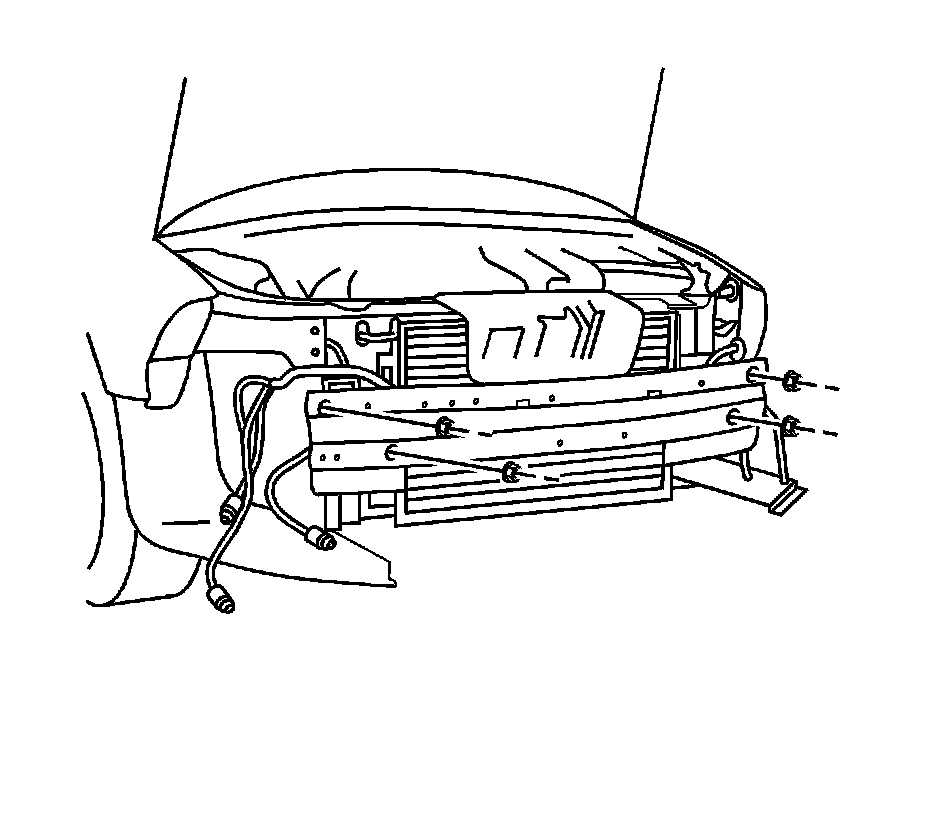

4. Remove the nuts from the front bumper impact bar.
5. Remove the front bumper impact bar.

Installation Procedure




1. Install the front bumper impact bar.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the nuts to the front bumper impact bar.

Tighten the front bumper impact bar nuts to 150 N.m (111 lb ft).

3. Install the wiring harness and the components to the impact beam.
4. Install the front fascia.
5. Lower the vehicle.
