Console Trim Plate Replacement

TRIM PLATE REPLACEMENT - CONSOLE

REMOVAL PROCEDURE




1. Position the gear selector to the neutral position.

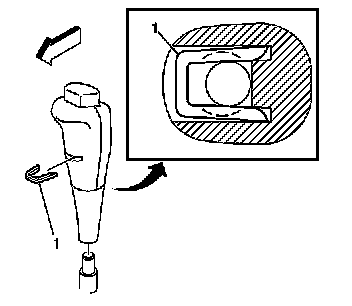

2. Remove the gear selector knob retainer (1), using a small flat-bladed tool.
3. Remove the gear selector knob, by pulling upward.




4. Release the front floor console trim plate retainers, using a flat bladed tool.

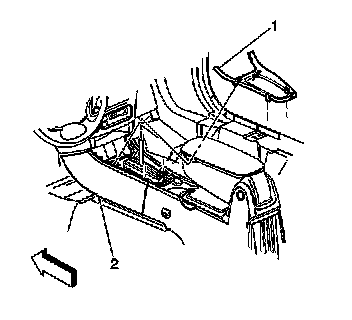

5. Remove the front floor console trim plate (1) from the front floor console (2).
6. Disconnect the electrical connectors from the front floor console trim plate.

INSTALLATION PROCEDURE




1. Connect the electrical connectors to the front floor console trim plate.
2. Align the front floor console trim plate retainers to the slots in the front floor console.
3. Install the front floor console trim plate (1), pressing into place until fully seated.




4. Position the gear selector knob to the shift lever.
5. Install the gear selector knob retainer (1), pressing into place until fully seated.
6. Reposition the gear selector to the Park position.
