License Plate Lamp: Service and Repair

LICENSE LAMP REPLACEMENT

REMOVAL PROCEDURE

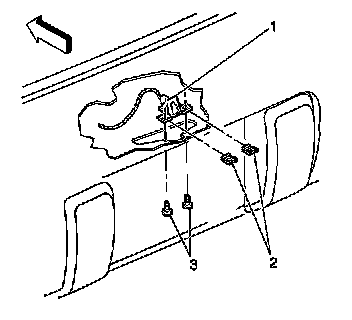

1. Remove the screws (3) from the license lamp.
2. Remove the license lamp (1) from the rear bumper fascia.
3. Remove the bulb/socket from the license lamp by rotating counterclockwise.
4. Remove the bulb from the socket, if required.

INSTALLATION PROCEDURE




1. Install the bulb to the socket, if required.
2. Install the bulb/socket to the license lamp.
3. Rotate the bulb/socket clockwise until fully seated.
4. Position the license lamp (1) to the rear bumper fascia.
5. Install the license lamp screws (3) to the license lamp.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (18 lb in).
