Windshield Washer Reservoir: Service and Repair

WASHER SOLVENT CONTAINER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the washer solvent from the washer solvent container.




2. Disconnect the washer pump electrical connector.
3. Disconnect the washer hose from the washer pump.
4. Disconnect the washer solvent level sensor electrical connector.

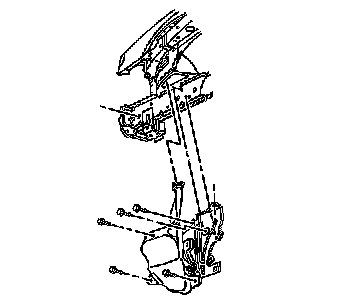

5. Remove the washer solvent container screws.
6. Remove the washer solvent container from the frame rail.

INSTALLATION PROCEDURE




1. Position the washer solvent container to the frame rail.
2. Install the washer solvent container screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 6 N.m (53 lb in).

3. Connect the washer solvent level sensor electrical connector.
4. Connect the washer hose to the washer pump.
5. Connect the washer pump electrical connector.
6. Fill the washer solvent container with washer solvent.
