Fuse Block - I/P Wire Entry Pinout
Fuse Block - I/P Wire Entry Pinout

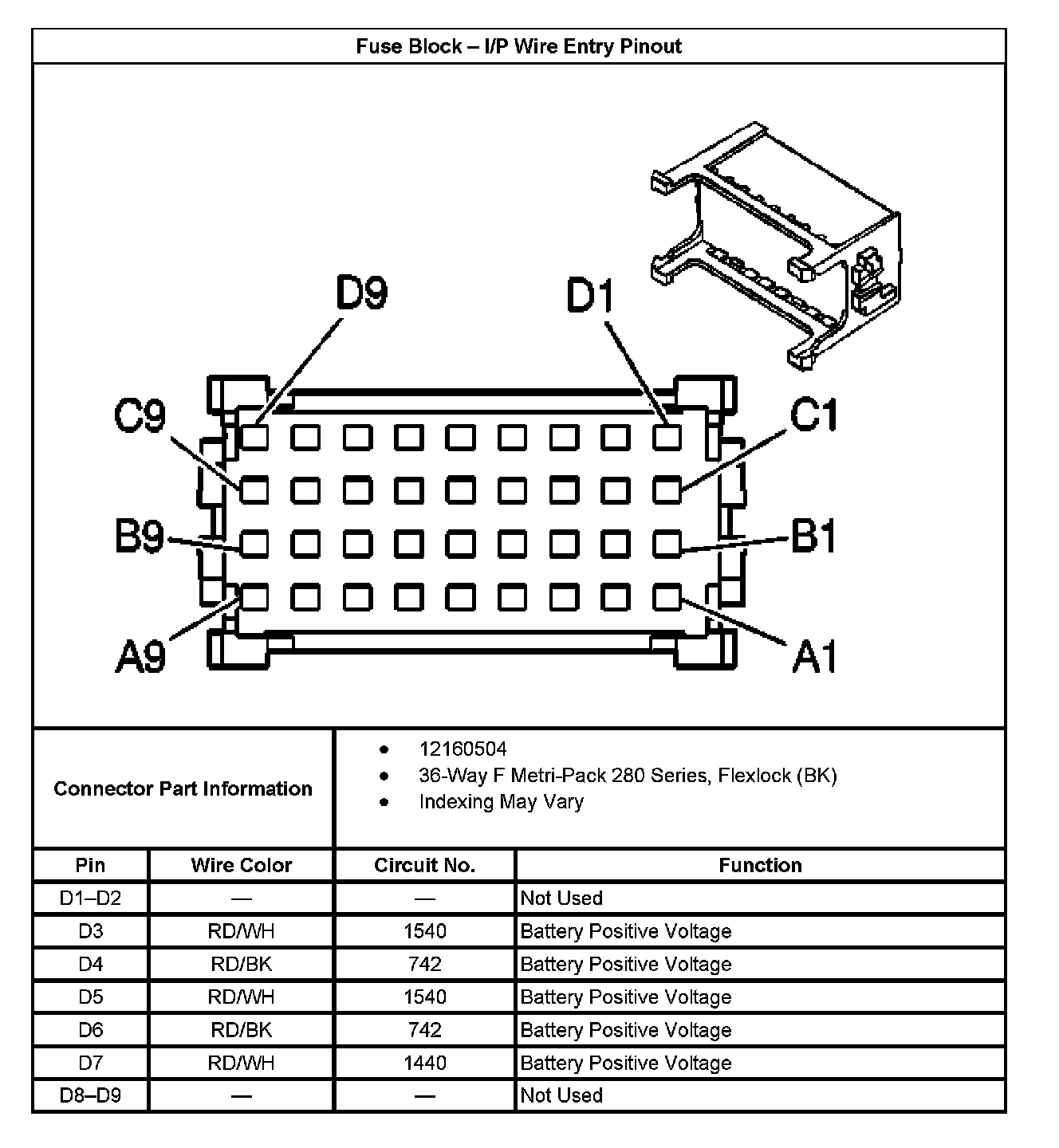

Fuse Block - I/P Wire Entry Pinout Part 1:

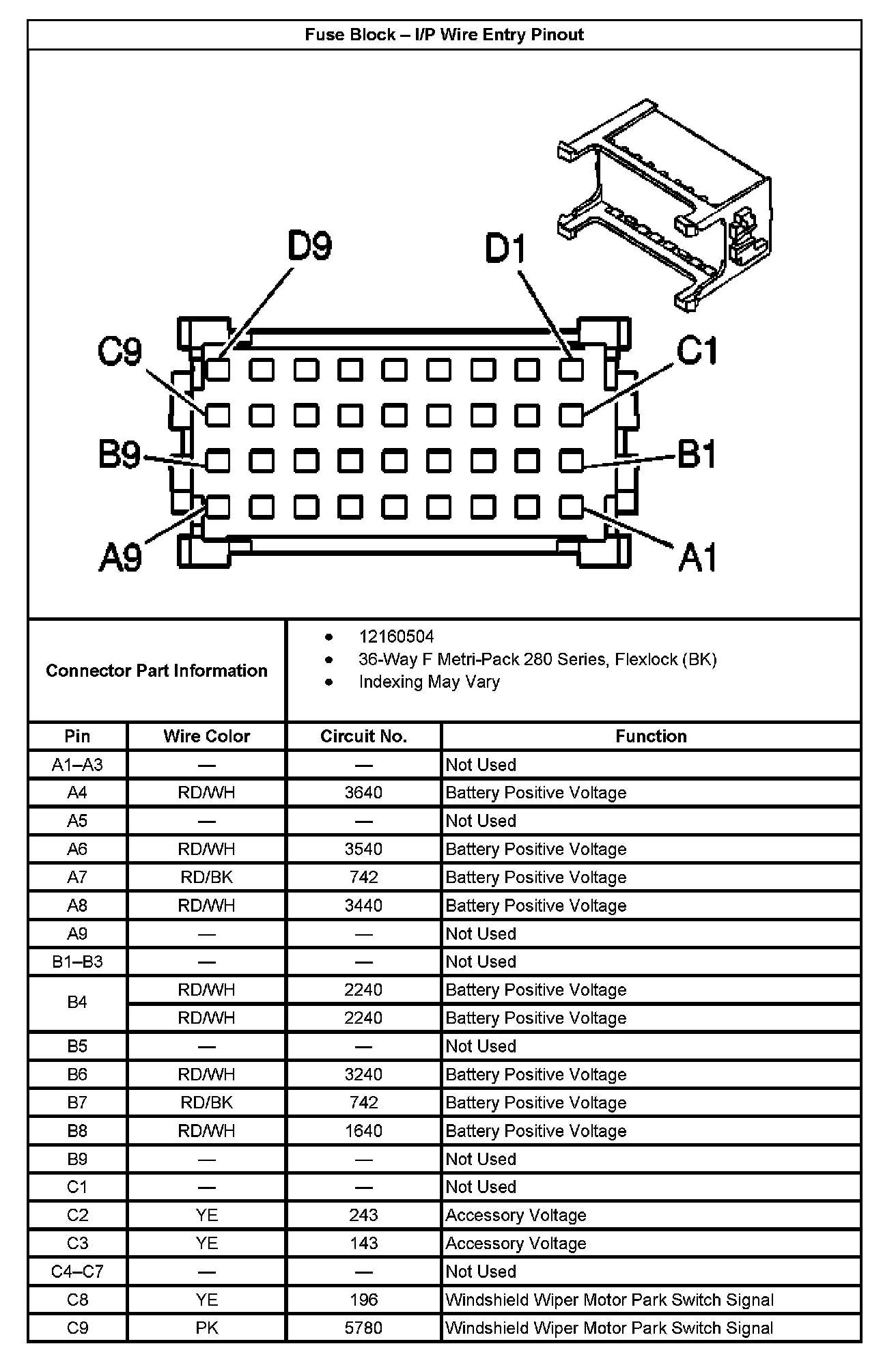

Fuse Block - I/P Wire Entry Pinout Part 2:
