Speaker
>>
LR Midrange
LR Midrange

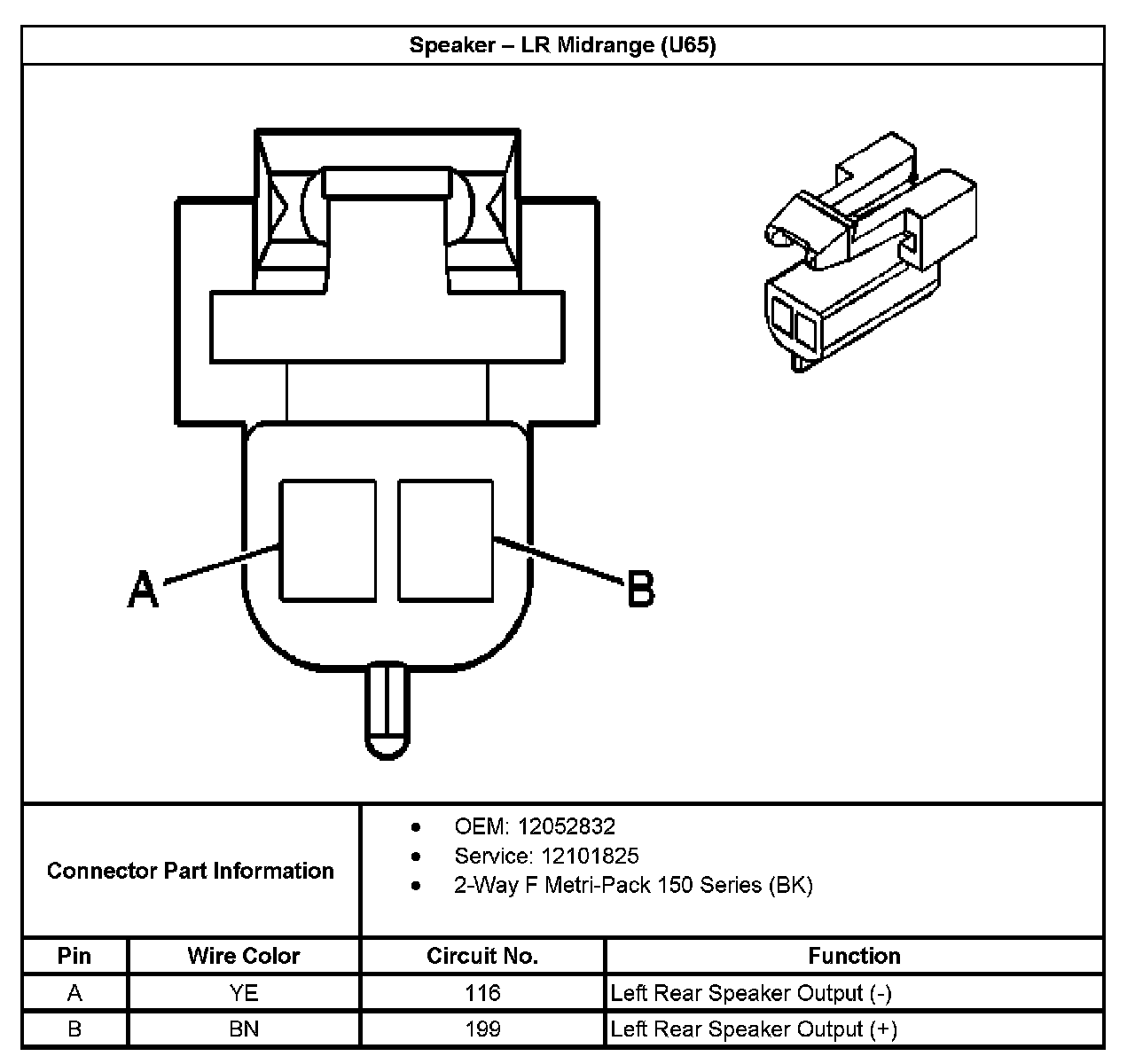

Speaker-LR Midrange (With RPO Code U65):

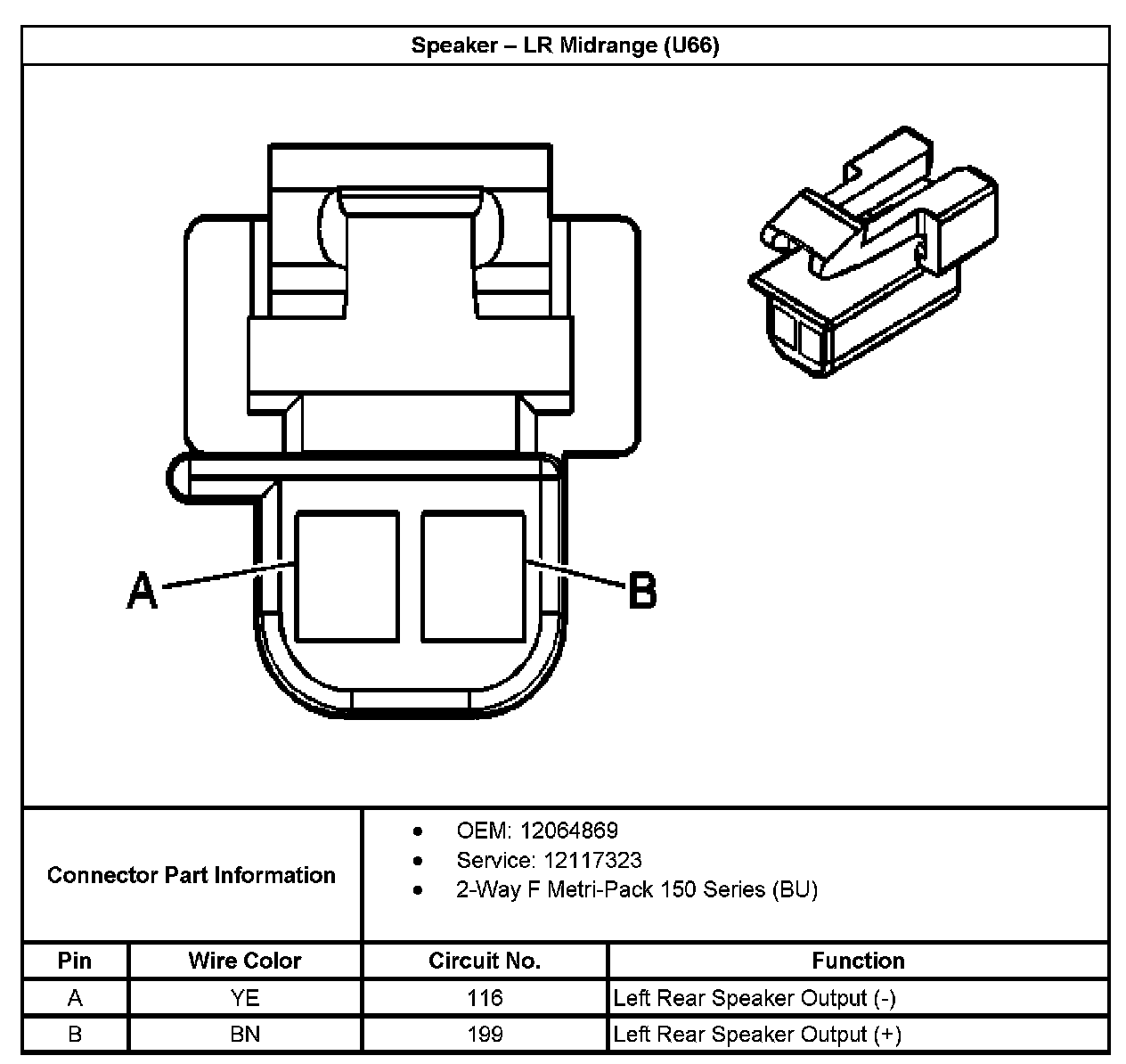

Speaker-LR Midrange (With RPO Code U66):
