Home
>>
Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

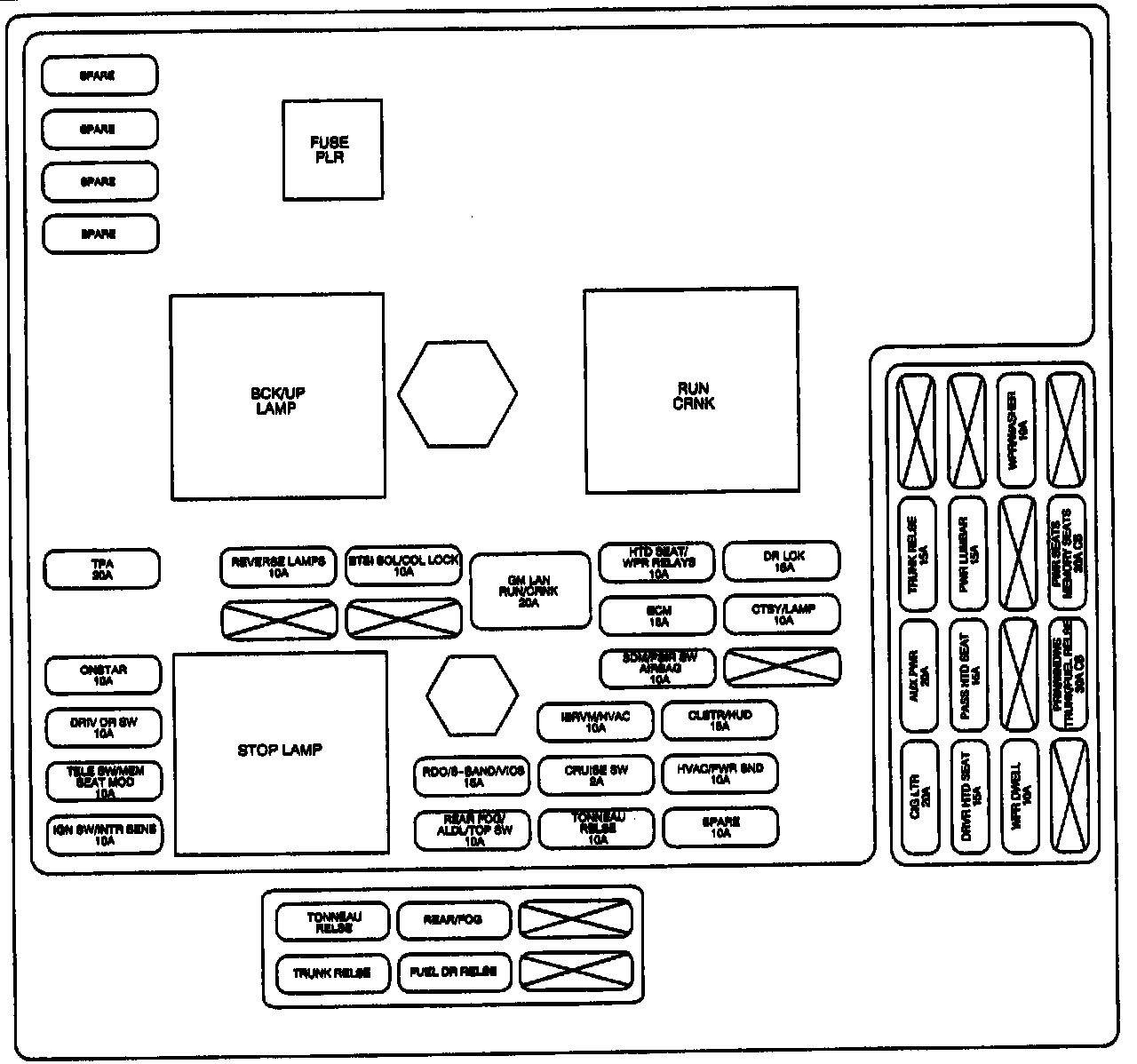

Instrument Panel Fuse Block
>>
Late Production
Late Production
Late Production:
Relay Block - I/P Label Usage:
