Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Underhood Fuse Block
Underhood Fuse Block

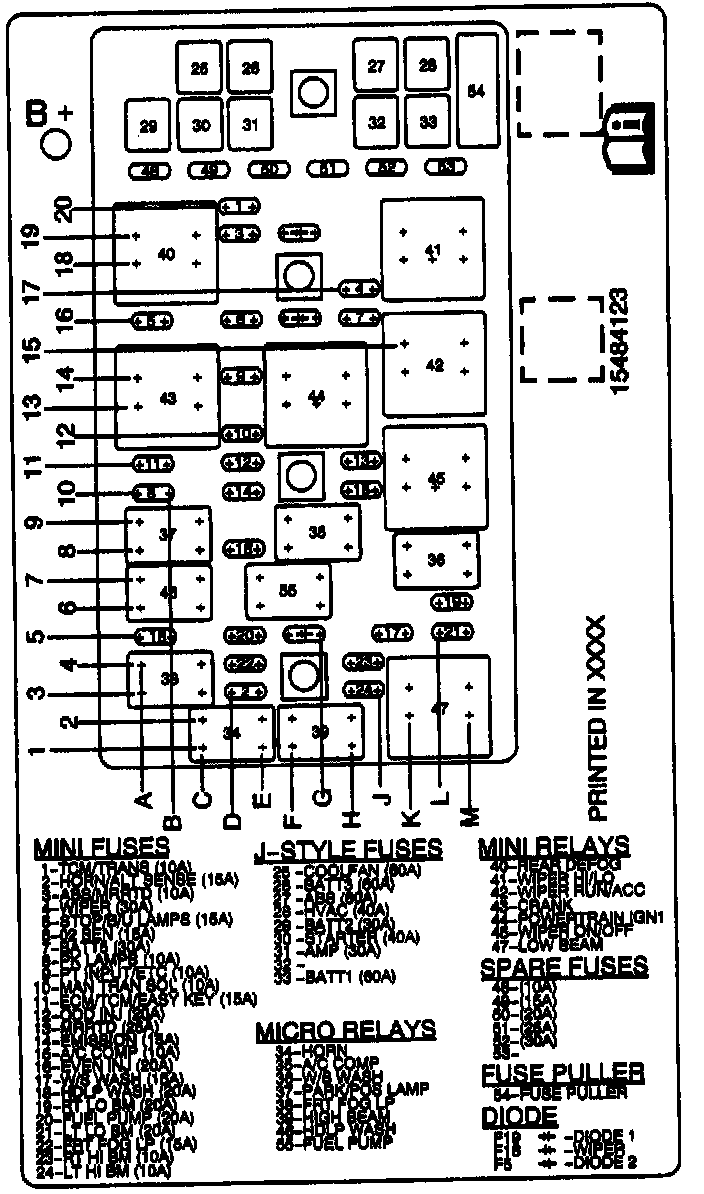

Underhood Fuse Block Label:

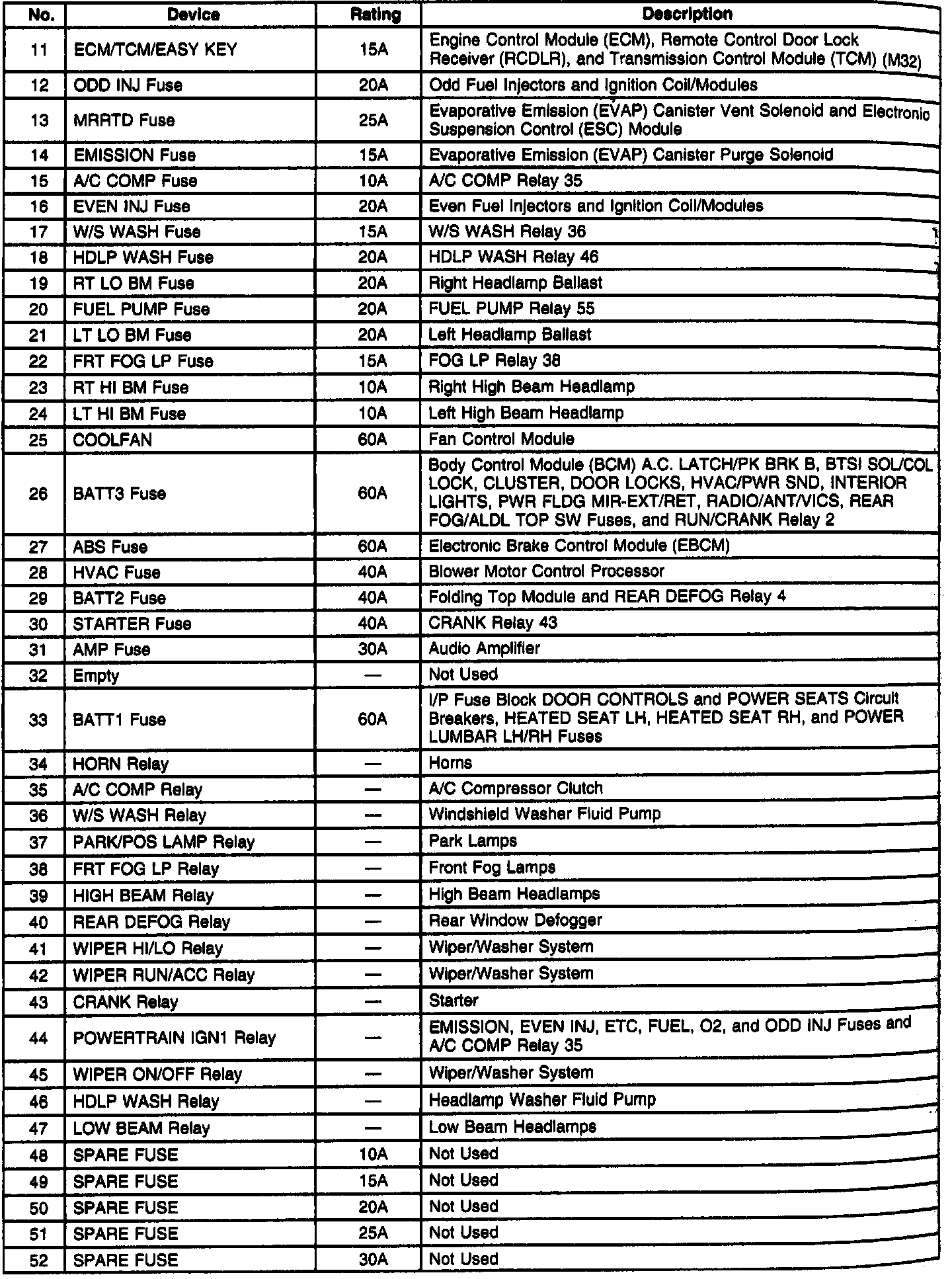

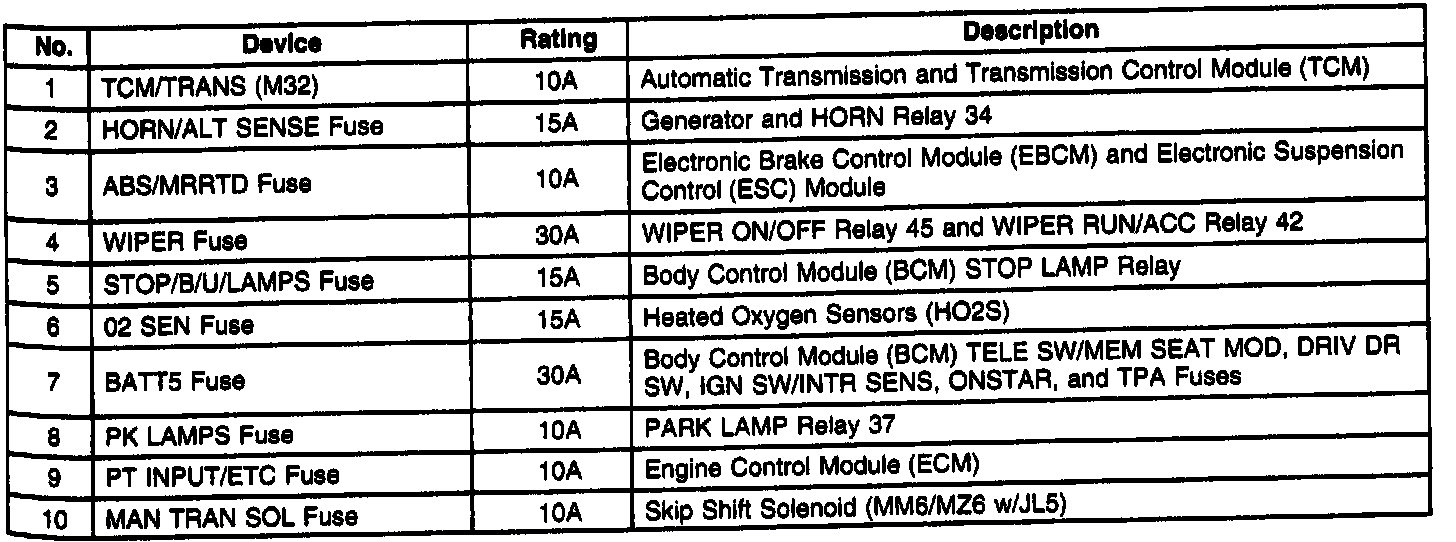

Fuse Block - Underhood Label Usage:
Fuse Block - Underhood Label Usage:

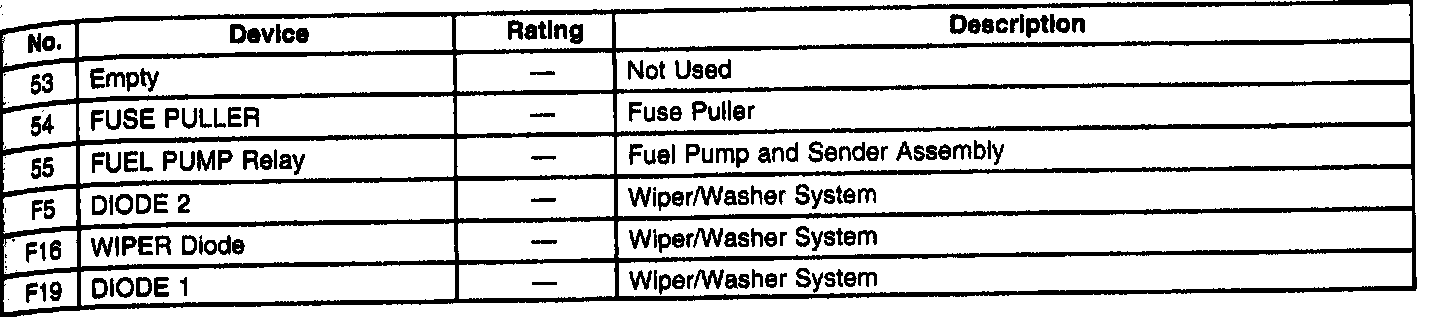

Fuse Block - Underhood Label Usage:
