Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Junction Block - Underhood Bottom
Junction Block - Underhood Bottom

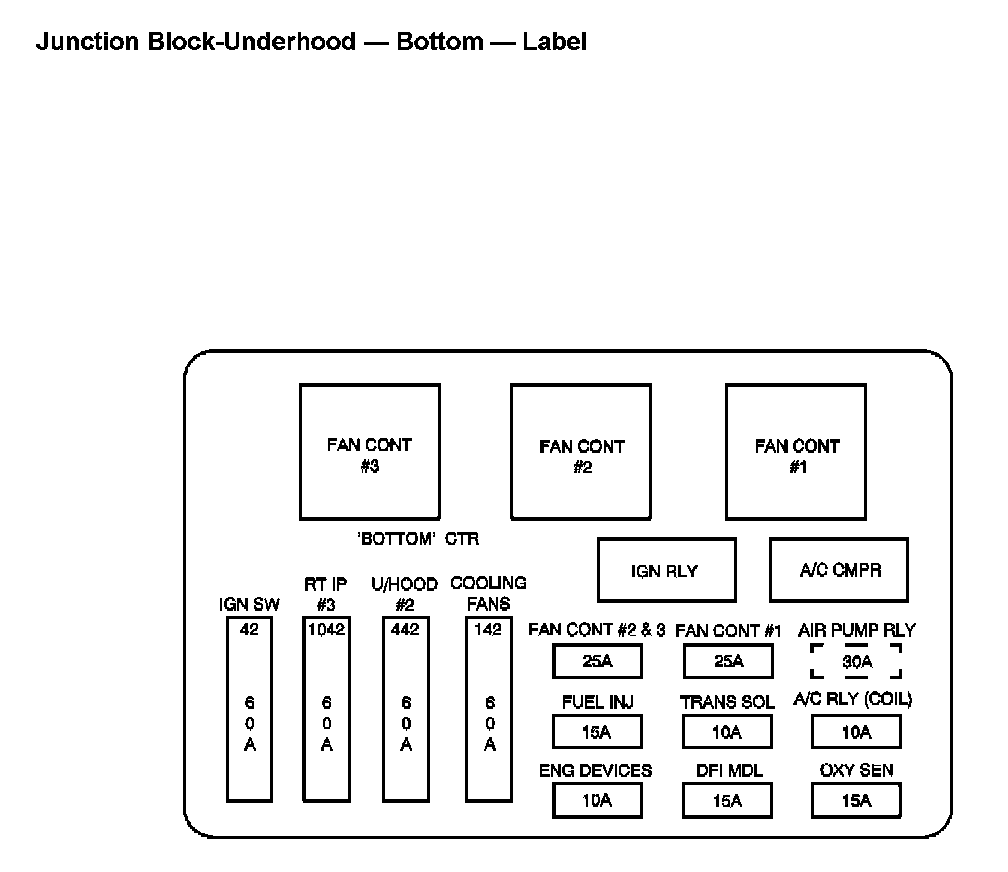

Location View:

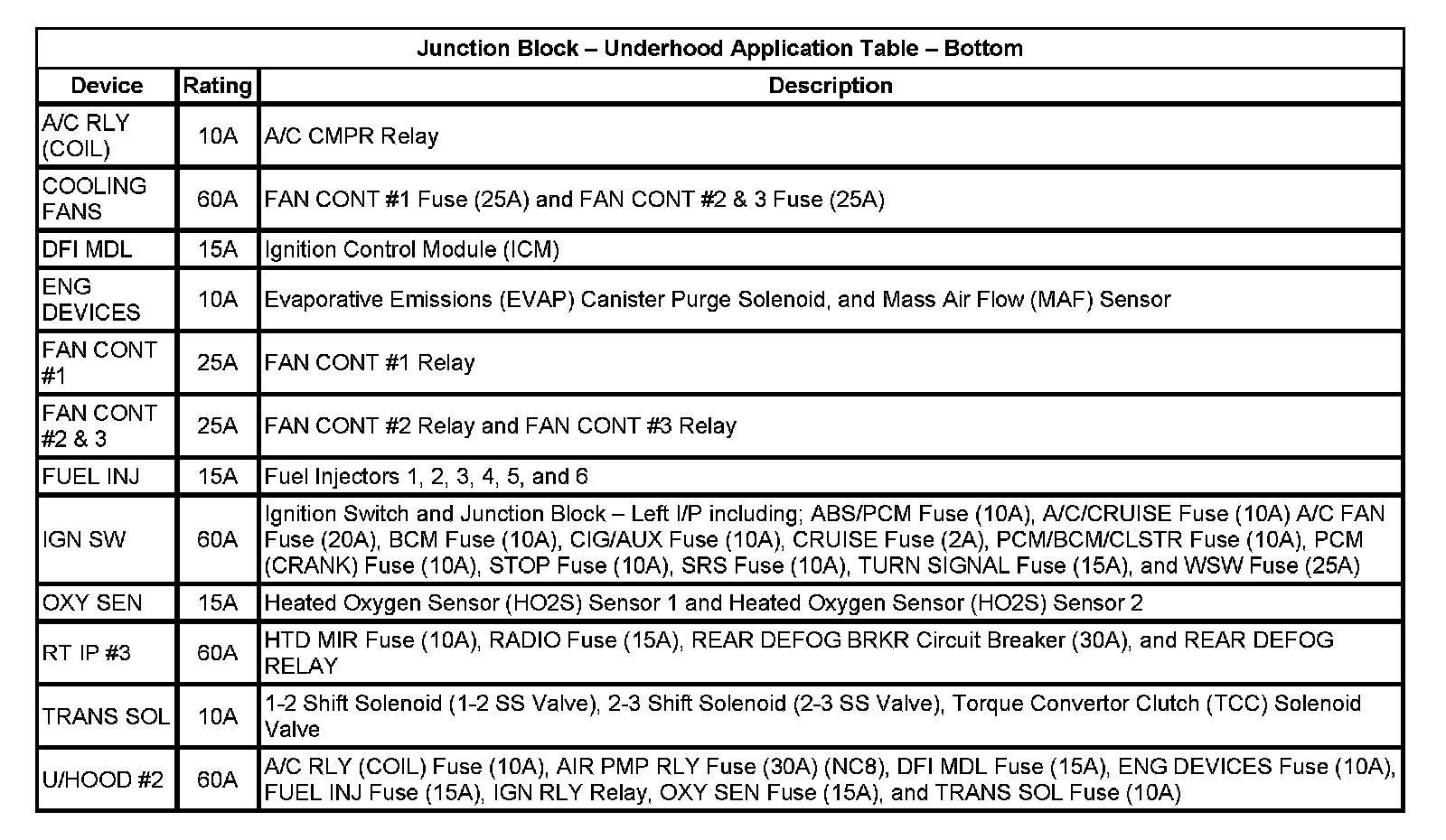

Application Table:
