Antilock Brakes / Traction Control Systems: Locations

Left Center of Engine Compartment





1 - C101
2 - G151
3 - A/C Refrigerant Pressure Sensor
4 - C113
5 - Electronic Brake Control Module (EBCM)
6 - Cruise Control Module (CCM)

Left Side of Instrument Panel (Impala)





1 - Traction Control Switch Connector
2 - Traction Control Switch

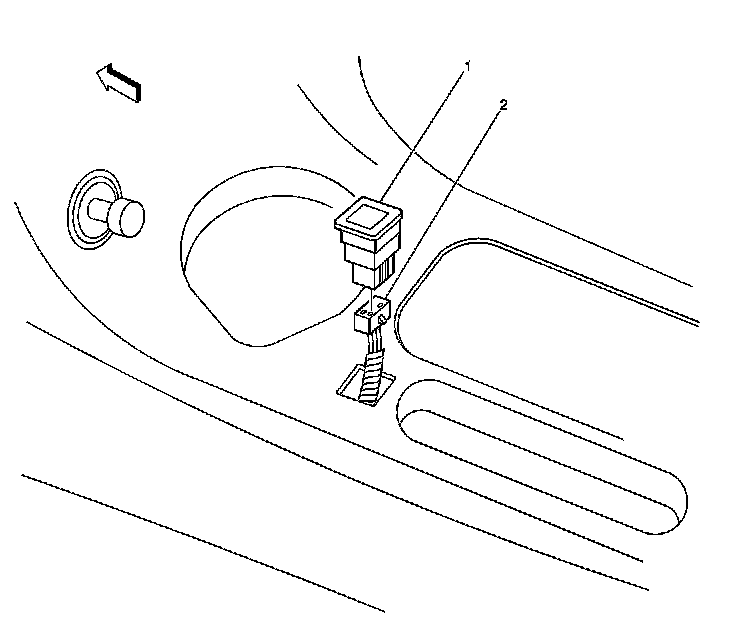

Front of Floor Console (Monte Carlo)





1 - Traction Control Switch
2 - Traction Control Switch Connector

Right Front Suspension, Left Front Similar





1 - Wheel Speed Sensor (WSS)-RF

Right Rear Suspension, Left Rear Similar

Rear Wheel Speed Sensors:

1 - Wheel Speed Sensor (WSS)-RR
2 - Strut Assembly
