Temperature Display Inaccurate or Inoperative

DRIVER INFORMATION CENTER (DIC) TEMPERATURE DISPLAY INACCURATE OR INOPERATIVE

TEST DESCRIPTION

Steps 1 - 10:

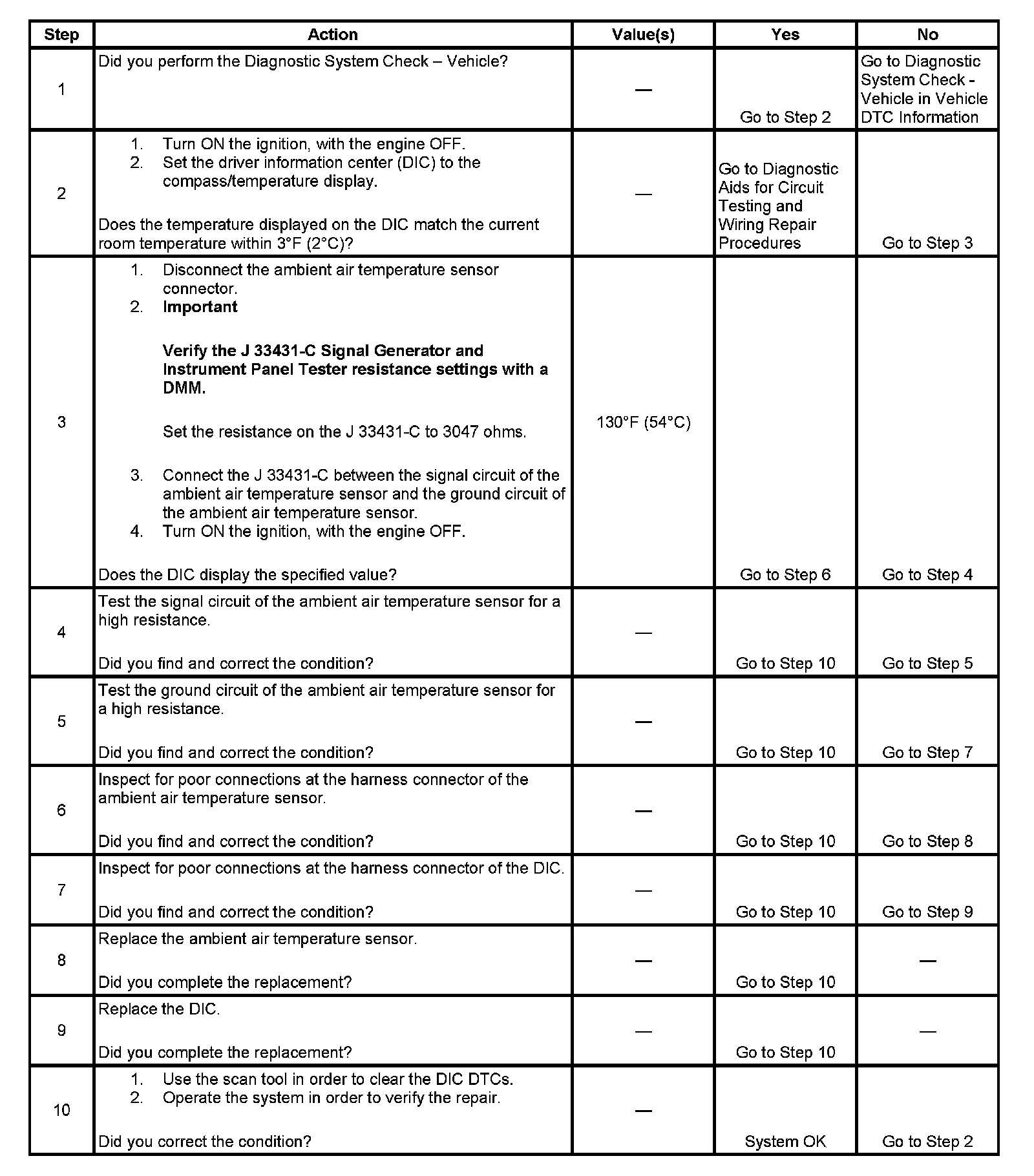

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for a high resistance in the signal circuit and the ground circuit of the ambient air temperature sensor.
10. DTCs may be set in the driver information center (DIC) when you perform this diagnostic table.
