Instrument Panel

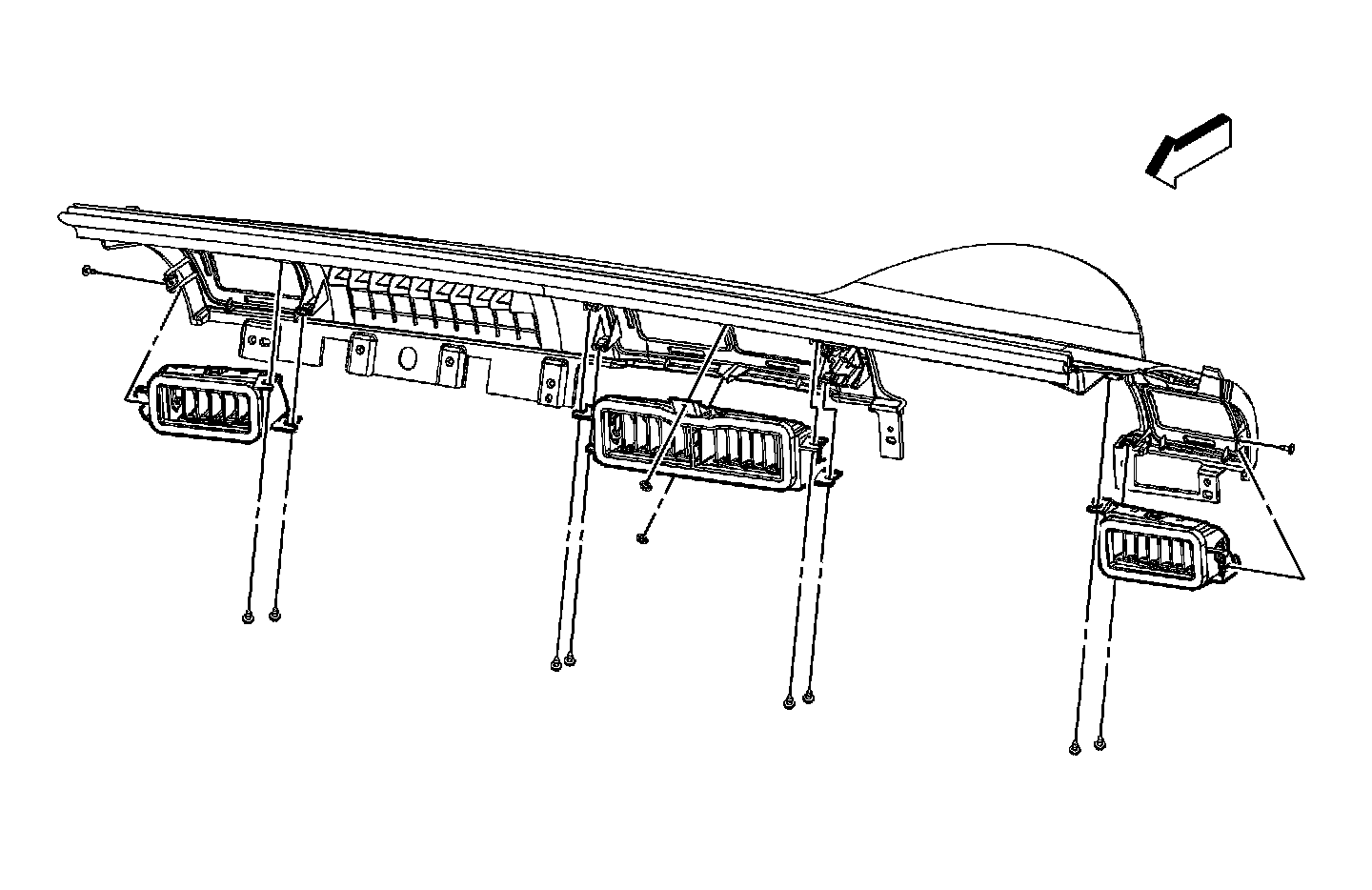

AIR OUTLET REPLACEMENT - INSTRUMENT PANEL

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) upper trim panel.
2. Remove the screws from the outlet.
3. Remove the outlet from the vehicle.

INSTALLATION PROCEDURE




1. Install the outlet to the I/P top panel.
2. Install the screws to the outlet.
3. Tighten the screws.

Tighten the screws to 2.2 N.m (19 lb in).

NOTE: Refer to Fastener Notice.

4. Install the I/P upper trim panel.
